Highlight:

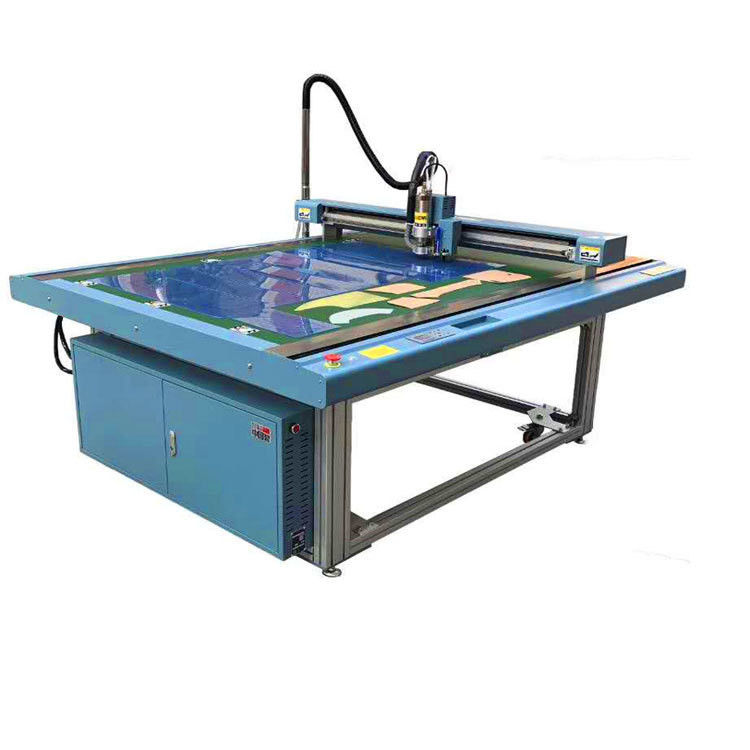

apparel garment CNC cutting machine
, all aluminum template cutter
, flatbed cutter with countertops
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
GM1509M5DU Apparel Garment CNC Cutting Plotter CNC Cutting Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |
GM1509M5DU Apparel Garment CNC Cutting Plotter
Main Features
- All-aluminum Profile Fuselage: Compact and Reasonable Design for Enhanced Stability
- Smart Accidental Power Off/Power Cut Data Recovery System: Prevents Material Waste
- One Key Intelligent Fixture with Multi-point Zone Adsorption System
- Multi-layer Cutting Capability in Single Operation
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Sequence
- Independent Templates Editing and Designing System
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
2000*1570*1100mm |
2000*1770*1100mm |
2300*1770*1100mm |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Product Gallery
Packaging & Shipping
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
