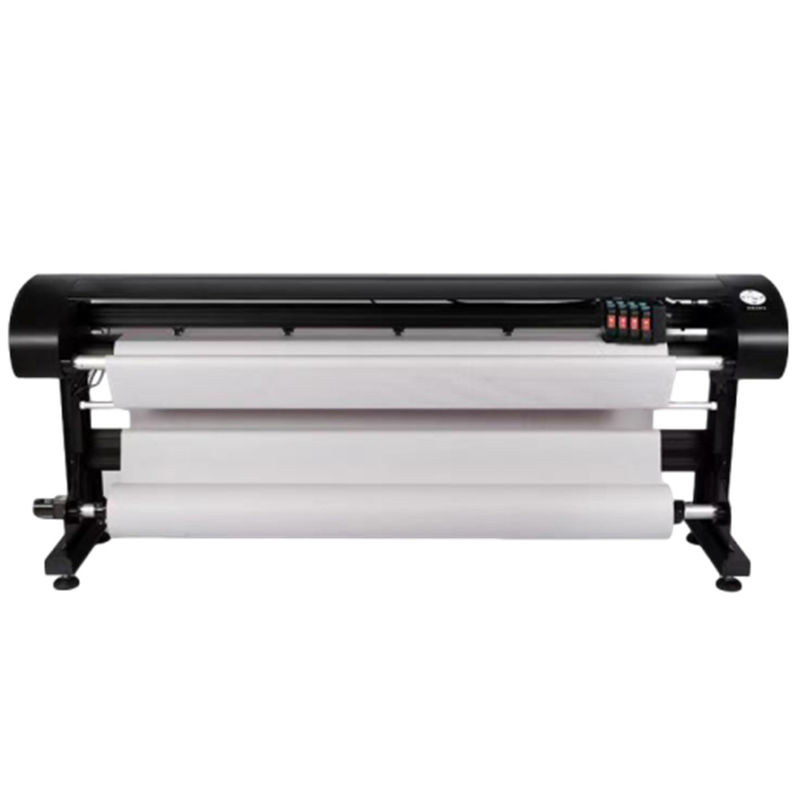

Garment Paper Pattern Graph Contour Printing Plotter
High Cost Performance Plotter with 165cm to 220cm Width
Professional garment paper pattern graph contour printing plotter designed for precision pattern printing in fashion, luggage, and footwear industries.
Main Features
- High-speed Servo Control with Full Closed-loop Positioning
- Independent Output Manager with Automatic File Queuing
- Advanced SOPC Technology Support
- Breakpoint Resume Function for Reliable Data Transmission
- Automatic Online Printing Capability
- 2, 3, or 4 Printing Heads Optional
- Automatic Nozzle Cleaning Before Printing
- Hidden Infrared Precise Paper Feeding System
- Unattended Automatic Paper Receiving and Feeding
Technical Parameters
| Type |
Product Model |
Printing Width (cm) |
Feeding Paper Width (cm) |
Printing Speed |
| Double Spray |
B-165-2 / B-185-2 / B-205-2 |
165 / 185 / 205 |
170 / 190 / 210 |
Two-way high speed 93 ㎡/h |
| Three Spray |
B-160-3 / B-180-3 / B-200-3 |
160 / 180 / 200 |
170 / 190 / 210 |
Two-way high speed 131 ㎡/h |
| Four Spray |
B-155-4 / B-175-4 / B-195-4 |
155 / 175 / 195 |
170 / 190 / 210 |
Two-way high speed 163 ㎡/h |
Additional Specifications
- Printing Format: HPGL drawing language, compatible with domestic and international CAD software
- Print Resolution: 150-600 DPI adjustable
- Nozzle Type: HP45A
- Line Quality: Clear, smooth, seamless with optional 1-8 lines
- Paper Loading: Front heightening device supports paper rolls up to 28cm diameter
- Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
- Communication Interface: Network port with multi-computer control capability
- Power Supply: 220V/50Hz
- Control Panel: Press key operation for simple, convenient, and durable use
- Machine Structure: Die standardized metal structure for high precision and long life
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries.
As a high-tech enterprise and software company in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines for clothing, bags, shoes, and hats with multiple software copyright and patent certificates.
Packing & Delivery
Exhibition & Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Products are usually packed in wooden cases according to export standards, and we can customize packaging according to your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
