Highlight:
automatic paper pattern cutting machine
, fast inkjet printing garment cutter
, flatbed inkjet cutter with warranty
Type: |
Inkjet Printer |
Print Dimension: |
1200*900 |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1700*1570*1100mm |
Weight: |
405 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Ink Box Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
Hot Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Nam: |
KAMEI 1209P5 Inkjet Paper Pattern Cutting Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1700*1570*1100mm |

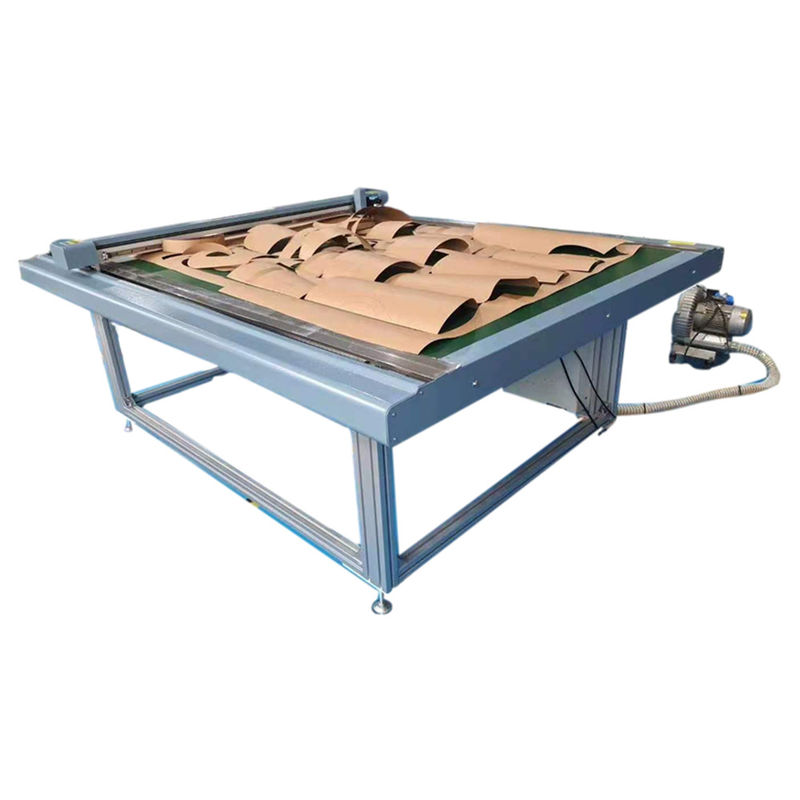

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine
Fast inkjet printing garment cutter for industrial pattern cutting applications
Advanced Features
- Unique inkjet and cutting double track tracking system
- Paper card abnormal monitoring system
- Cutting starting points and cutting sequence display system
- Automatic paging system
- Comprehensive fault detection system for entire machine
Technical Specifications
| Model |
GM-1209P5 |
GM-1509P5 |
GM-1510P5 |
GM-1512P5 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1700*1570*1100 |
2000*1570*1100 |
2000*1570*1100 |
2000*1770*1100 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Gallery
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world's advanced technology with Chinese manufacturing advantages. Our innovative design differs from traditional domestic cutting machines, fully embodying the "good at core, simple in shape" design principle. After introducing the first continuous drum cutter in central China, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of global manufacturing transfer to central regions, establishing a research and development team composed of doctors, senior engineers, and other high-quality professionals. We insist that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for over 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: After-sales service
A: Yes, we provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
