Highlight:
PVC acrylic epoxy board cutter
, professional garment sewing template cutter
, flatbed plastic template cutter
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Nice Quality Garment Template Cutting Machine Template Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
2000*1570*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

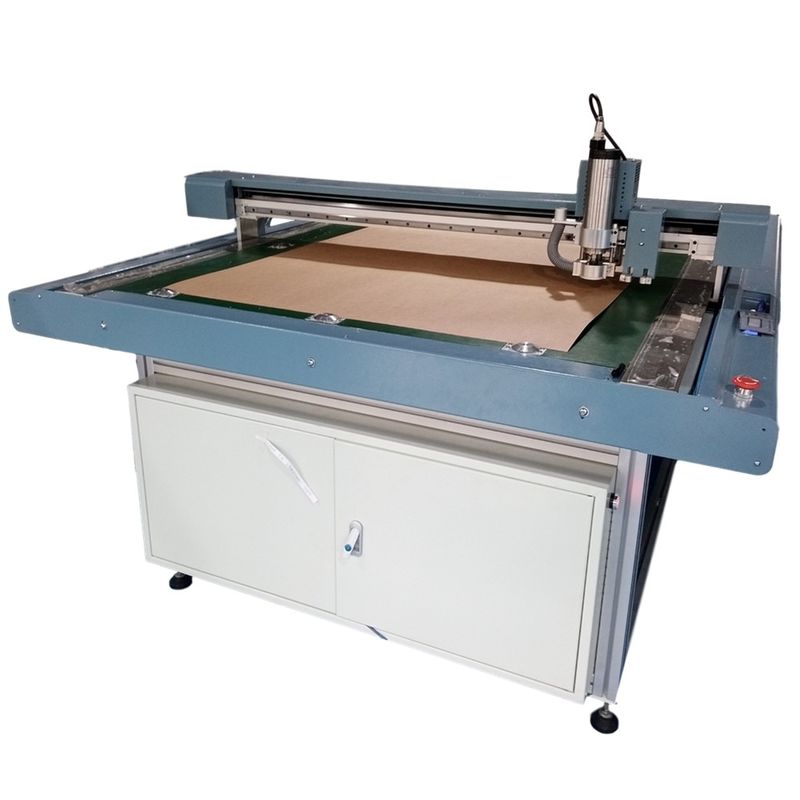

PVC Acrylic Epoxy Board Template Cutter for Plastic Garment Sewing
Professional template cutting machine designed for PVC, acrylic, epoxy boards and various plastic materials used in garment sewing and template making applications.
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
2000*1570*1100 |
2000*1770*1100 |
2300*1770*1100 |
Performance Features
| Product Features |
Compatible with various CAD softwares; Design while the machine is cutting |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Main Features
- All-aluminium Profile Fuselage; Compact and Reasonable; More Stable
- Global Initiative: Smart Accidental Power Off/Power Cut Data Recovery System (Avoid Cutting Materials Wasting)
- One Key Intelligent Fixture + Multi-point Zone Adsorption System
- Multi-layer at One-time Cutting
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Product Images
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes. Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.
As a high-tech enterprise and software enterprise in Hubei Province, Gemei has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates.
Packing & Delivery
Exhibition & Trade Shows
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
