Highlight:
automatic garment paper cutter
, roller pattern cutting plotter
, white paper flatbed inkjet cutter
Type: |
Inkjet Printer |
Print Dimension: |
1400*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1455*800mm |
Weight: |
459 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
New Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Flatbed Auto Paper Feeder Cutting Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Red And Black Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1400*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1480*1100mm |
Special Functions: |
Rollar Paper Feeding Automatic Paper Feeding |

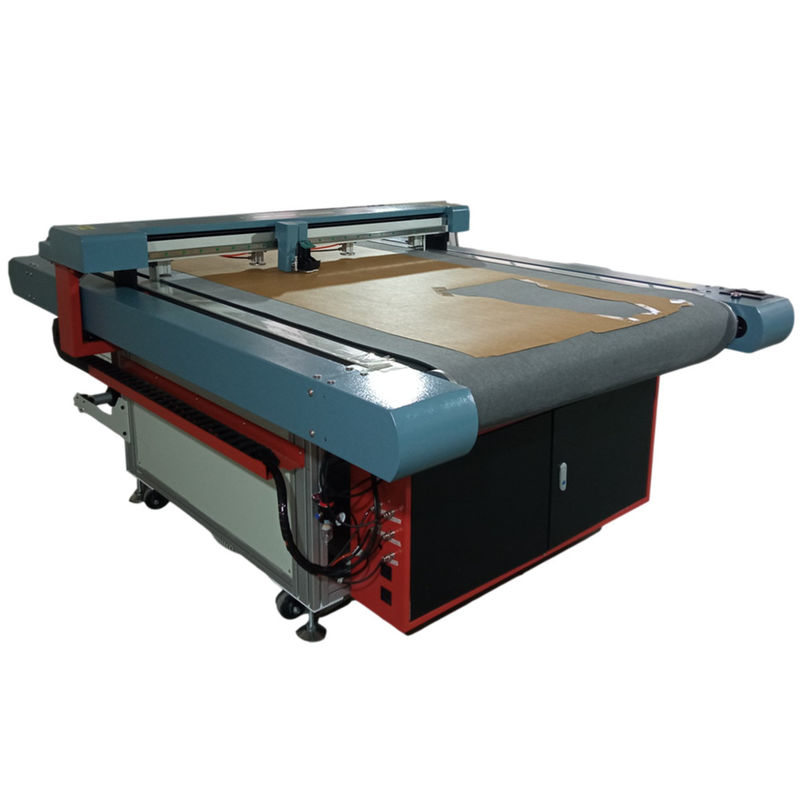

KAMEI Automatic Roller Garment Paper Pattern Cutting Plotter for White Paper Materials
Automatic Paper Feeding Flatbed Fast Inkjet Cutting Plotter
Advanced paper pattern cutting machine designed for efficient garment manufacturing and industrial applications.
GM1410GP Automatic Paper Feeding Flatbed Pattern Cutting Plotter
Main Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
- Roller Automatic Paper Feeding System
- Dual Knife Version Optional - Full Cut and Half Cut simultaneously
- One Knife One Pen Holder option for inkjet cutting and pen drawing simultaneously
Technical Parameters
| Model |
GM-1509GP |
GM-1410GP |
GM-1512GP |
| Cutting Window (Fabric Scope) |
1200*900mm |
1400*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1800*1280*1100 |
2000*1455*1100 |
2100*1700*1100 |
| Max Speed |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Printing Speed |
60㎡/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH |
| Paper Thickness |
150g-500g/㎡ |
| Paper Feeding Mode |
Roller Automatic Paper Feeding |
Application Areas
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, and more.
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on research and development, production, sales and service of automation equipment for clothing, bags and shoes industries.
Our company carries the mission of "changing traditional industries with high technology" and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is recognized as a high-tech enterprise and software enterprise in Hubei Province, with "information port" certification and status as an entrepreneurship enterprise for overseas students in Wuhan City.
Since establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine international technological excellence with Chinese manufacturing advantages, featuring innovative designs that emphasize core functionality and simplicity.
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for completion.
