Highlight:
Universal HP45 ink cartridge cutter
, Dual ink cartridge paper cutter
, Flatbed inkjet contour cutting machine
Type: |
Inkjet Printer |
Print Dimension: |
1400*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1455*800mm |
Weight: |
459 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
New Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Good Quality Garment Cutting Plotter 1410 Size Automatic Feeder |
Cutting Machine Frame And Case: |
Blue Frame+Red And Black Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1400*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1480*1100mm |
Special Functions: |
Rollar Paper Feeding Automatic Paper Feeding |
Universal Dual HP45 Ink Cartridge Paper Pattern Cutter
Advanced contour cutting design with automatic feeder for precise paper pattern graph cutting.

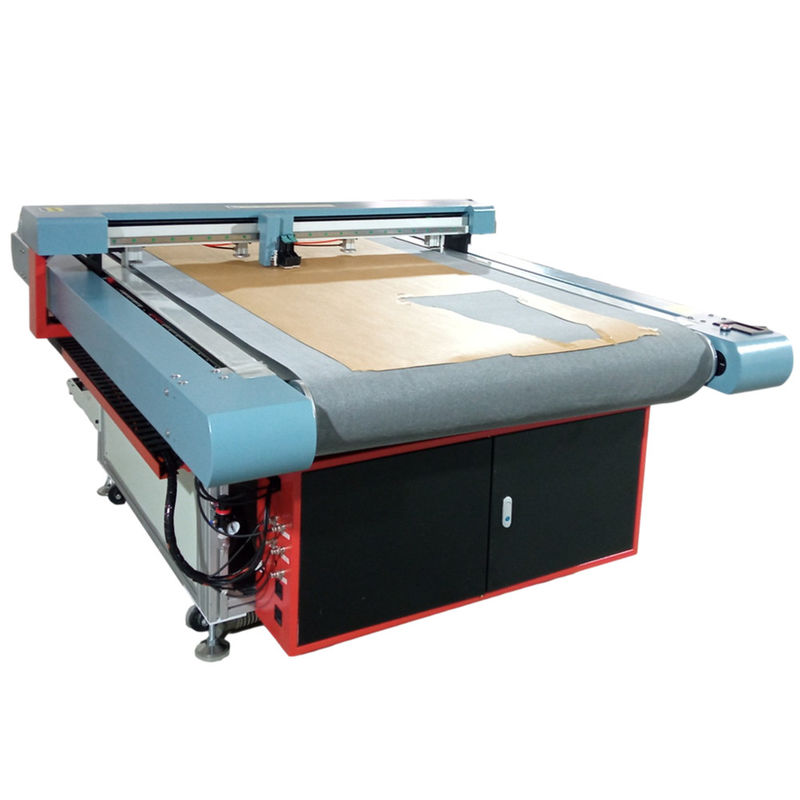

GM1410GP Automatic Paper Feeding Flatbed Pattern Cutting Plotter
Main Features
- Unique inkjet and cutting double track tracking system
- Paper card abnormal monitoring system
- Cutting starting points and cutting sequence display system
- Automatic paging system
- Fault detection system for whole machine
- Roller automatic paper feeding system
- Dual knife version optional for full cut and half cut simultaneously
- One knife one pen holder option for inkjet cutting and pen drawing simultaneously
Technical Parameters
| Model |
GM-1509GP |
GM-1410GP |
GM-1512GP |
| Cutting Window (Fabric Scope) |
1200*900mm |
1400*1000mm |
1500*1200mm |
| Overall Dimension |
1800*1280*1100mm |
2000*1455*1100mm |
2100*1700*1100mm |
| Max Speed |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Printing Speed |
60㎡/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ (-22~122℉); Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/㎡ |
| Paper Feeding Mode |
Roller Automatic Paper Feeding |
Application Areas
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, and more.
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We specialize in the research and development, production, sales and service of automation equipment for the clothing, bags and shoes industries.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is a high-tech enterprise and software enterprise in Hubei Province, with "information port" certification and recognition as an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, adopting novel designs that embody the "good at core, simple in shape" principle.
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available to meet your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
