Highlight:
KAEMI M3 template cutting machine
, 1500x900mm flatbed template cutter
, stencil cutter with large cutting area
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Garment Template Cutter Stencil Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

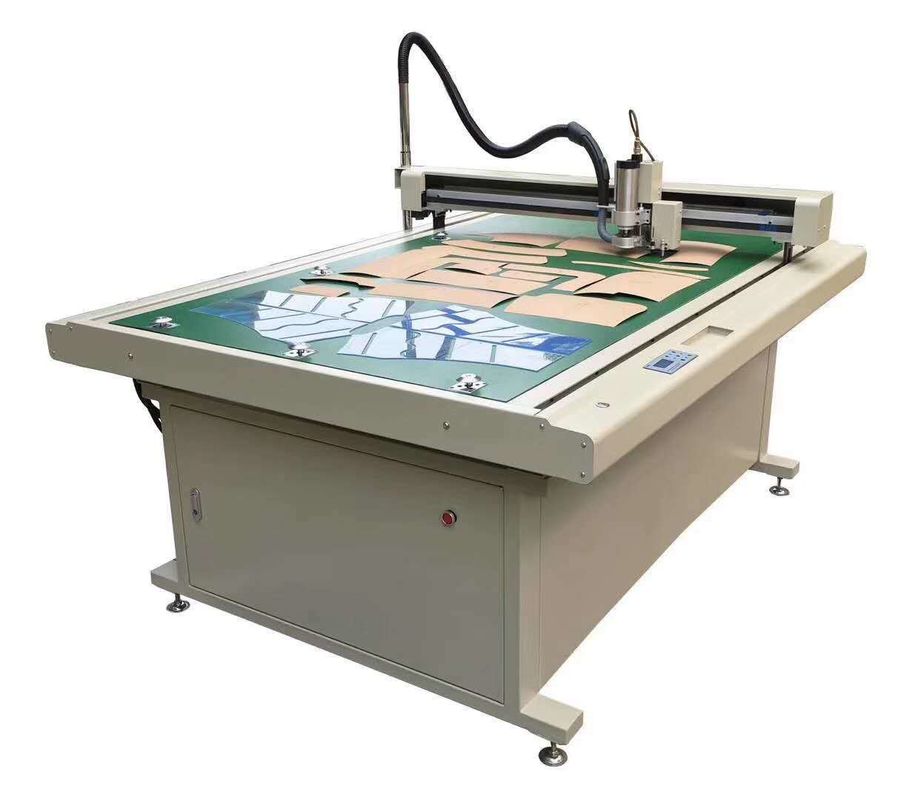

Hot KAEMI M3 Template Cutting Machine
1500*900mm Cutting Area Template Stencil Cutter
Key Features
- Pneumatic Fixation Technology for High Efficiency Template Processing
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM-1812M3 |
| Cutting Window |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
1900*1450*1100mm |
1900*1750*1100mm |
2200*1750*1100mm |
| Product Features |
Compatible with various CAD software; Design while machine is cutting |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, and more |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30°C to 55°C (-22°F to 131°F) |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000-240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Product Gallery
Packaging & Shipping
About GEMEI
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, the GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world's advanced technology with Chinese manufacturing advantages. Our innovative design differs from traditional domestic cutting machines, embodying the "good at core, simple in shape" design principle. Following the development of China's first continuous drum cutter, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI capitalizes on the global manufacturing industry's shift to central regions, maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for completion.
