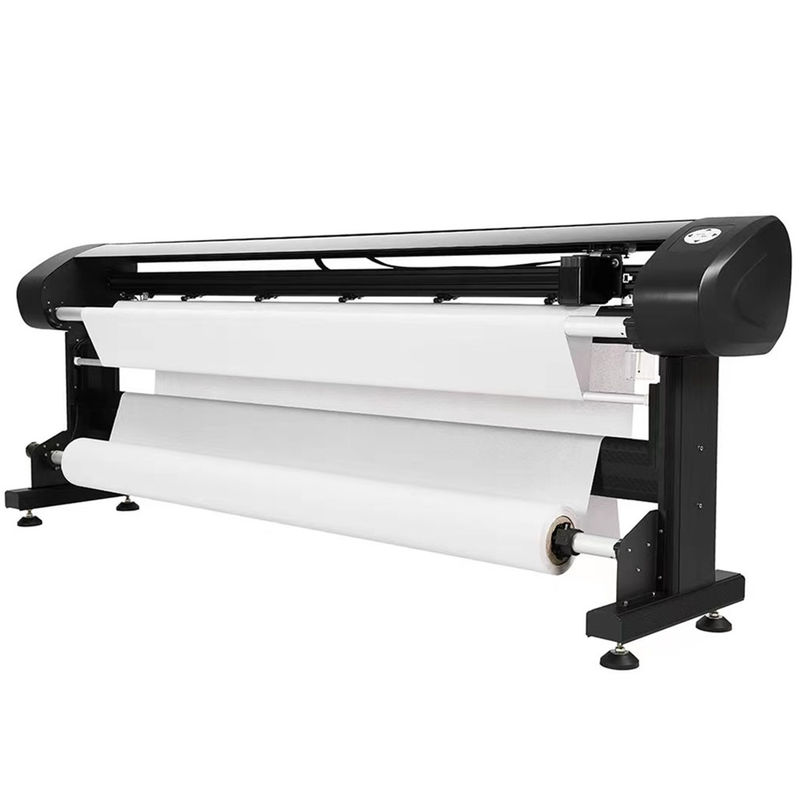

Refillable Big Ink Cartridge Continuous Ink Supply Inkjet Plotter for CAD Garment Patterns with 1900mm to 2600mm Printing Width

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                refillable ink cartridge for CAD printing, large format plotter ink cartridge, continuous inkjet cartridge for clothing patterns


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Continuous Inkjet Clothing CAD Inkjet Paper Pattern Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm	Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge	Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	PLT Or DXF

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Continuous Inkjet Clothing CAD Inkjet Paper Pattern Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm
Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	PLT Or DXF

Product Description

Refillable Big Ink Cartridge for Continuous Inkjet Printing in CAD Clothing Patterns

High Performance Garment CAD Inkjet Paper Pattern Plotter

Professional printing solution with 1900mm to 2600mm printing width featuring big capacity continuous ink supply system.

Key Features

High-speed Servo Control with Full Closed-loop Positioning for accurate output in various situations
Independent Output Manager supports file background automatic queuing printing
Advanced SOPC technology implementation
Breakpoint resume function ensures reliable data transmission and printing
Two-direction high-speed printing capability
Super EPSON Ink Box with big capacity continuous ink supply system
Easy ink refill operation without ink box replacement
Environmentally friendly and cost-effective solution

Technical Specifications

Parameter	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260
Ink System	Big Capacity EP20L Continuous Ink Supply - No Ink Box Replacement Required

Printing Speed: Two-way high speed 120 m²/h

Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software

Print Resolution: 150-600DPI

Nozzle Type: EP20L

Line Quality: Clear, smooth, no seam, optional 1-8 lines

Paper Loading: Front heightening device supports paper roll with diameter of 28cm

Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation

Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper

Communication Interface: Network port, multiple computers can separately control printing

Working Conditions: Temperature 10~35℃ (50~95℉); Humidity 15%--85% RH (No Condensation)

Product Gallery

Packaging & Shipping

Company Profile

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.

Our design philosophy follows "good at core, simple in shape" principle. After introducing the first continuous drum cutter in central China, we successively developed sample cutters for the luggage industry and continuous cutting garment sample cutters.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of world manufacturing industry transferring to central regions, and has established a research and development team composed of doctors, senior engineers and other high-quality talents, insisting that "innovation" is the eternal power of GEMEI's development.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.

Q: How do you pack these products?

A: Usually packed in wooden cases and can pack according to export standards or your requirements.

Q: Is it customizable?

A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.

Q: What about after-sales service?

A: Yes, we provide professional after-sales team and 24-hour technical support by phone, email or Skype.

Q: What is your lead time?

A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
