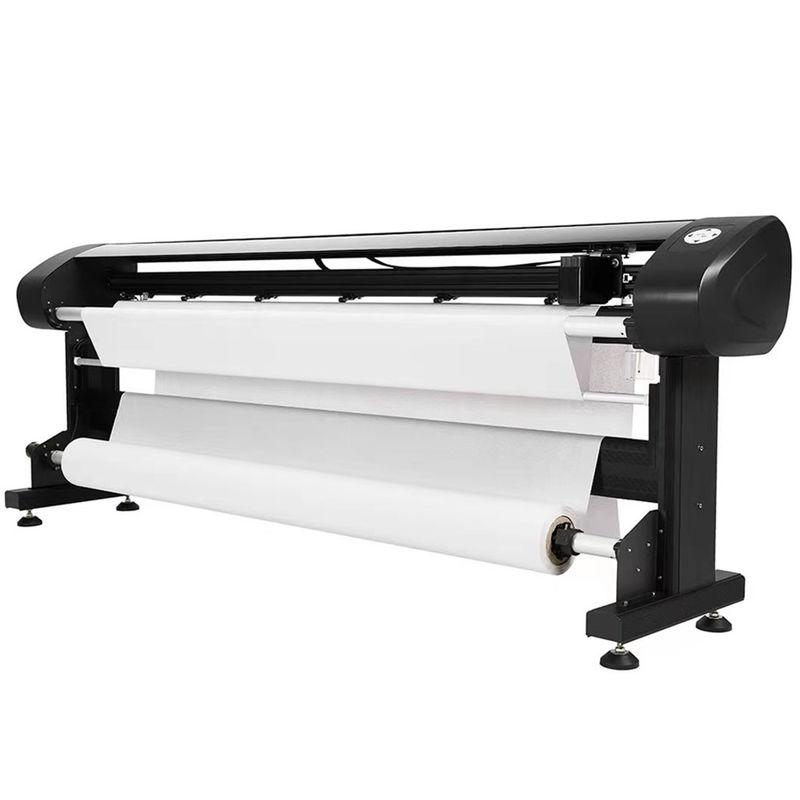

Large Format Inkjet Plotter with Continuous Ink Cartridge for 1900mm to 2500mm Cutting Size and 150-600DPI Printing Resolution

Name: Large Format Inkjet Plotter with Continuous Ink Cartridge for 1900mm to 2500mm Cutting Size and 150-600DPI Printing Resolution
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                white inkjet plotter paper, fast printing inkjet paper, large format continuous ink cartridge


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Big Ink Cartridge Paper Pattern Graph Contour Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL	Model:	EP20L-19

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Big Ink Cartridge Paper Pattern Graph Contour Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL
Model:	EP20L-19

Product Description

High-Speed White Paper Printing with Continuous Ink Supply

Professional inkjet plotter featuring fast printing speeds, continuous ink cartridge efficiency, and precise pattern graph contour printing for industrial applications.

Key Features

High-speed servo control with full closed-loop positioning for accurate output
Independent output manager supports file background automatic queuing printing
Advanced SOPC technology with breakpoint resume function
Two-direction high-speed printing at 120 m²/h
Super EPSON ink box with big capacity continuous ink supply
Easy ink addition without ink box replacement
Environmentally friendly and economical operation
Automatic nozzle cleaning before printing
Hidden infrared precise paper feeding system
Unattended automatic paper receiving and feeding

Technical Specifications

Product Model	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Printing Speed: Two-way high speed 120 m²/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600 DPI
Type of Nozzle: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Continuous 700 meters without deviation
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Machine Structure: Die standardized metal structure, high precision and long life
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%--85% RH (With no Condensation)

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.

As a high-tech enterprise and software enterprise in Hubei Province, Gemei provides CAM/CAD integrated solutions and has developed a series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates.

Packaging & Delivery

Certifications & Quality Standards

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer basic sizes commonly used in the field and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
