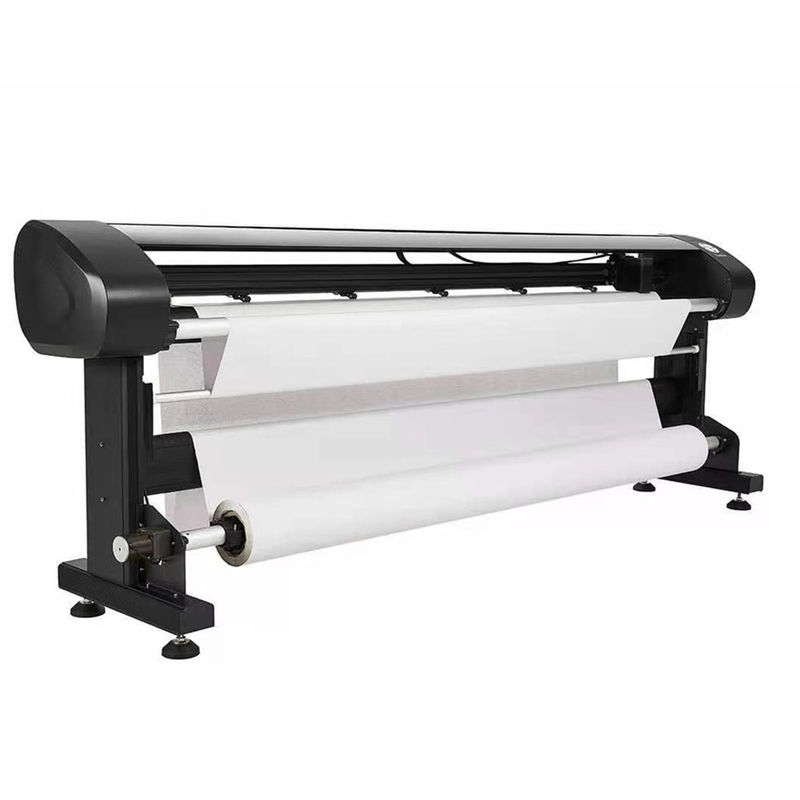

High Speed 120 sqm/h Inkjet CAD Cutter Plotter with Continuous H801 Ink Cartridge and 1900mm to 2500mm Cutting Size

Name: High Speed 120 sqm/h Inkjet CAD Cutter Plotter with Continuous H801 Ink Cartridge and 1900mm to 2500mm Cutting Size
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                H801 ink cartridge CAD cutter, high-speed inkjet plotter cartridge, large format plotter ink cartridge


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Inkjet CAD Cutter Plotter Big Ink Cartridge Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL	Model:	EP20L-19

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Inkjet CAD Cutter Plotter Big Ink Cartridge Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL
Model:	EP20L-19

Product Description

Continuous Printing Tool H801 Ink Cartridge Inkjet CAD Cutter Plotter with High Speed

120 sqm/h High Speed Inkjet CAD Cutter Plotter Big Ink Cartridge Printing Plotter

Main Features

High-speed Servo Control with Full Closed-loop Positioning
Independent Output Manager with File Background Automatic Queuing Printing
Advanced SOPC technology with breakpoint resume function
Two Directions High Speed Printing at 120 ㎡/h
Super EPSON Ink Box with Big Capacity Continuous Ink Supply
Easy ink addition operation - no ink box replacement required
Environmental friendly and economical operation

Technical Specifications

Parameter	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Additional Technical Parameters

Printing Speed: Two-way high speed 120 ㎡/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers control
Power Supply: 220V/50Hz
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%--85% RH (With no Condensation)

Company Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.

The company carries the mission of "changing traditional industries with high technology" and provides CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is recognized as a high-tech enterprise and software enterprise in Hubei Province.

Since establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine Chinese and foreign technologies, featuring innovative design and core-focused engineering principles.

Packing & Delivery

Exhibition

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
