Highlight:
large format inkjet plotter with cutter
, HP45 inkjet paper pattern cutter
, flatbed inkjet cutter for printing
Type: |
Inkjet Printer |
Print Dimension: |
1500*1200 |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1700*800mm |
Weight: |
489 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Ink Box, Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
Hot Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Inkjet Paper Pattern Plotter Dual Head CAD Inkjet Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1900*1700*800mm |

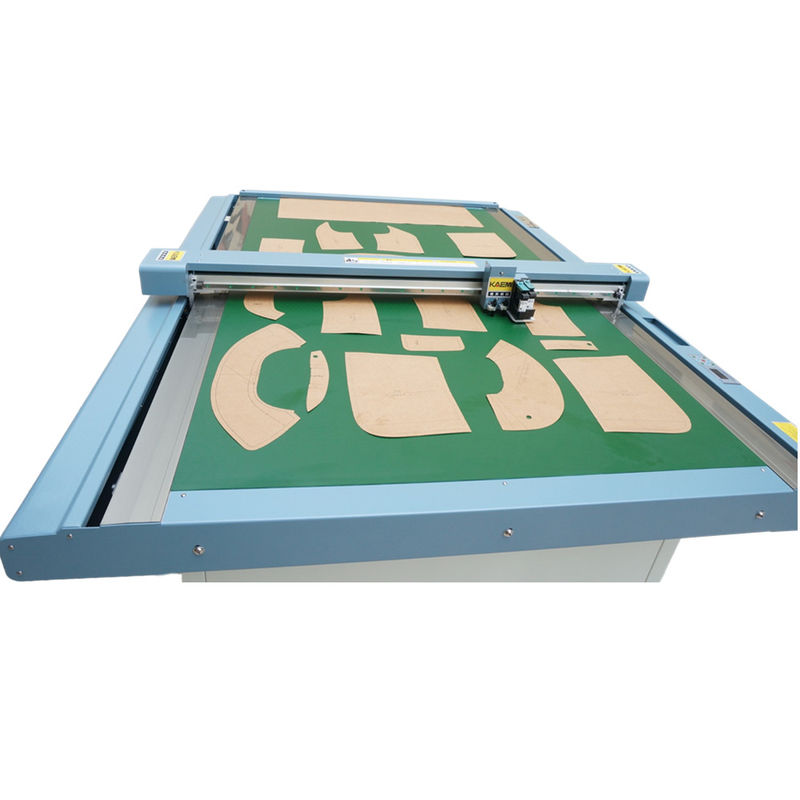

1500*1200mm Print Dimension Inkjet Paper Pattern Plotter with HP45 Ink Box Cutter
Professional dual-head CAD inkjet cutter with 1500*1200mm cutting area, combining precision printing and cutting capabilities for industrial applications.
Advanced System Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
Technical Specifications
| Model |
GM-1209P3 |
GM-1509P3 |
GM-1510P3 |
GM-1512P3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1600*1280*800 |
1900*1280*800 |
1900*1455*800 |
1900*1700*800 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Gallery
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world's advanced technology with Chinese manufacturing advantages.
Our innovative design philosophy focuses on "good at core, simple in shape" principles. Following the development of the first continuous drum cutter in central China, we have successively created specialized cutting solutions for the luggage industry and continuous cutting garment applications.
"The competition of enterprises is the competition of talents." GEMEI leverages the global manufacturing trend toward central regions by maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's continuous development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available based on your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize solutions according to your specific requirements.
Q: After-sales service
A: We provide professional after-sales support with 24-hour technical assistance available via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship within 2-4 days, while custom orders require 5-7 days for completion.
