Highlight:
459 kg auto paper roller cutter
, 3mm thickness inkjet cutter plotter
, flatbed garment cutter with warranty
Type: |
Inkjet Printer |
Print Dimension: |
1400*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1455*800mm |
Weight: |
459 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
New Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Garment Cutter 3mm Thickness Paper Inkjet Cutter Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Red And Black Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1400*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1480*1100mm |
Special Functions: |
Rollar Paper Feeding Automatic Paper Feeding |

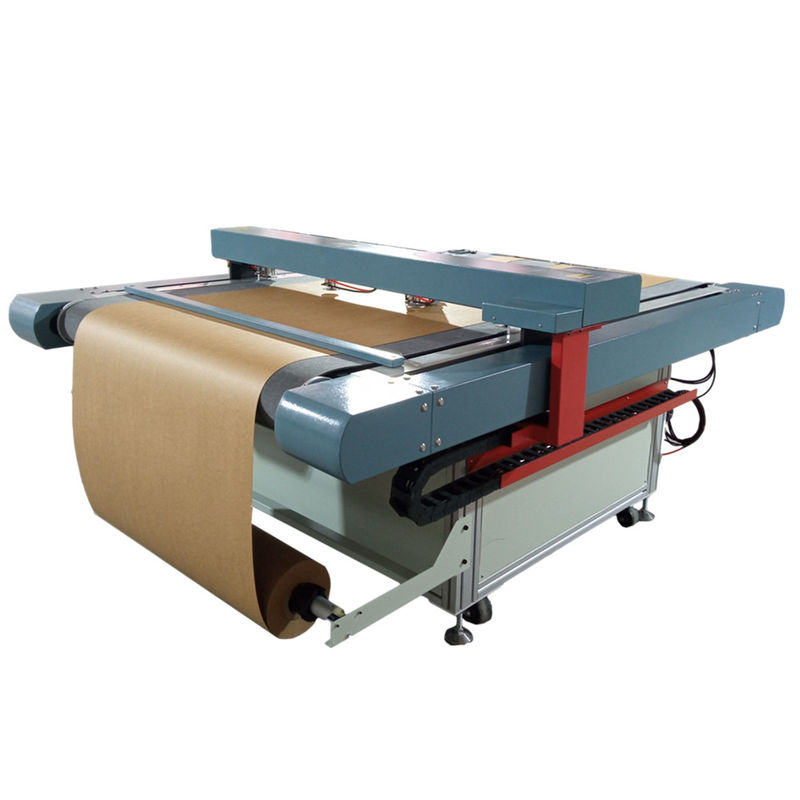

Auto Paper Roller Garment Cutter 3mm Thickness Paper Inkjet Cutter Plotter
GM1410GP Automatic Paper Feeding Flatbed Pattern Cutting Plotter
Main Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
- Roller Automatic Paper Feeding System
- Dual Knife Version Optional - can perform Full Cut and Half Cut simultaneously
- One Knife One Pen Holder option for inkjet cutting and pen drawing simultaneously
Technical Parameters
| Model |
GM-1509GP |
GM-1410GP |
GM-1512GP |
| Cutting Window (Fabric Scope) |
1200*900mm |
1400*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1800*1280*1100 |
2000*1455*1100 |
2100*1700*1100 |
| Max Speed |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Printing Speed |
60㎡/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH |
| Paper Thickness |
150g-500g/㎡ |
| Paper Feeding Mode |
Roller Automatic Paper Feeding |
Application Areas
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc.
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
