Highlight:
dual head inkjet paper cutter
, automatic paper feeder plotter
, flatbed inkjet pattern cutter
Type: |
Inkjet Printer |
Print Dimension: |
1400*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1455*800mm |
Weight: |
459 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
New Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Inkjet Paper Pattern Cutting Plotter Automatic Paper Feeder Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Red And Black Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1400*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1480*1100mm |
Special Functions: |
Rollar Paper Feeding Automatic Paper Feeding |

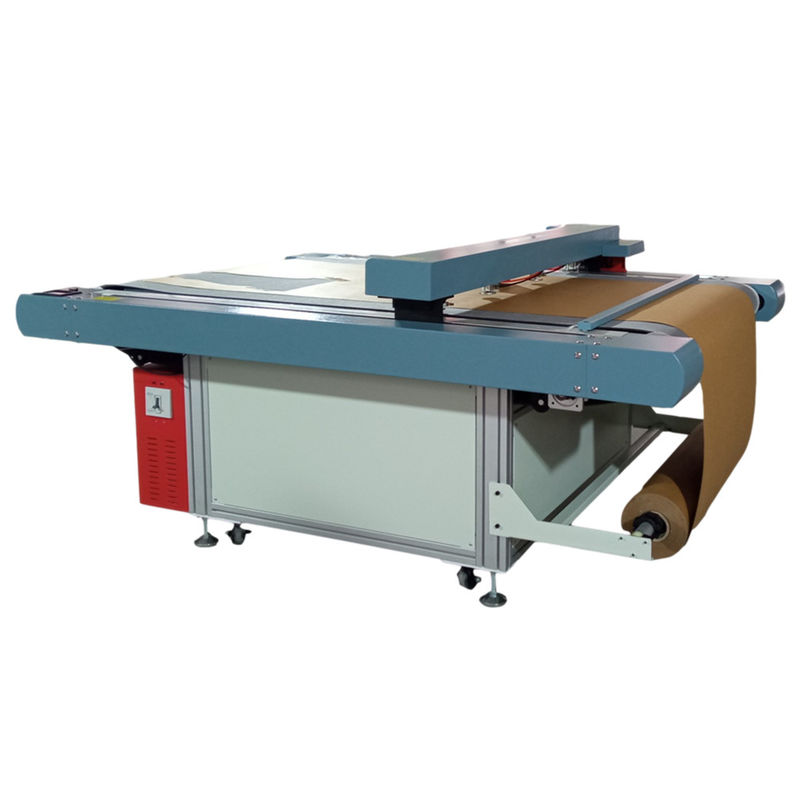

GM1510 Dual Head Inkjet Paper Pattern Cutting Plotter
Automatic paper feeder and cutter included for efficient pattern cutting operations.
Advanced Features
- Unique inkjet and cutting double track tracking system
- Paper card abnormal monitoring system
- Cutting starting points and cutting sequence display
- Automatic paging system
- Comprehensive fault detection system
- Roller automatic paper feeding system
- Dual knife version available for full cut and half cut operations
- Optional pen holder for simultaneous inkjet cutting and drawing
Technical Specifications
| Model |
GM-1509GP |
GM-1410GP |
GM-1512GP |
| Cutting Window (Fabric Scope) |
1200*900mm |
1400*1000mm |
1500*1200mm |
| Overall Dimension |
1800*1280*1100mm |
2000*1455*1100mm |
2100*1700*1100mm |
| Maximum Speed |
1200mm/s |
| Materials Fastening |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Printing Speed |
60㎡/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ (-22~122℉); Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/㎡ |
| Paper Feeding Mode |
Roller Automatic Paper Feeding |
Application Areas
Garment manufacturing, shoe-making, bags, furniture, automobile decoration, box cutting, and related industries.
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoe industries. As a high-tech enterprise certified by Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has obtained numerous software copyright and patent certificates.
Packaging & Delivery
Exhibition & Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
