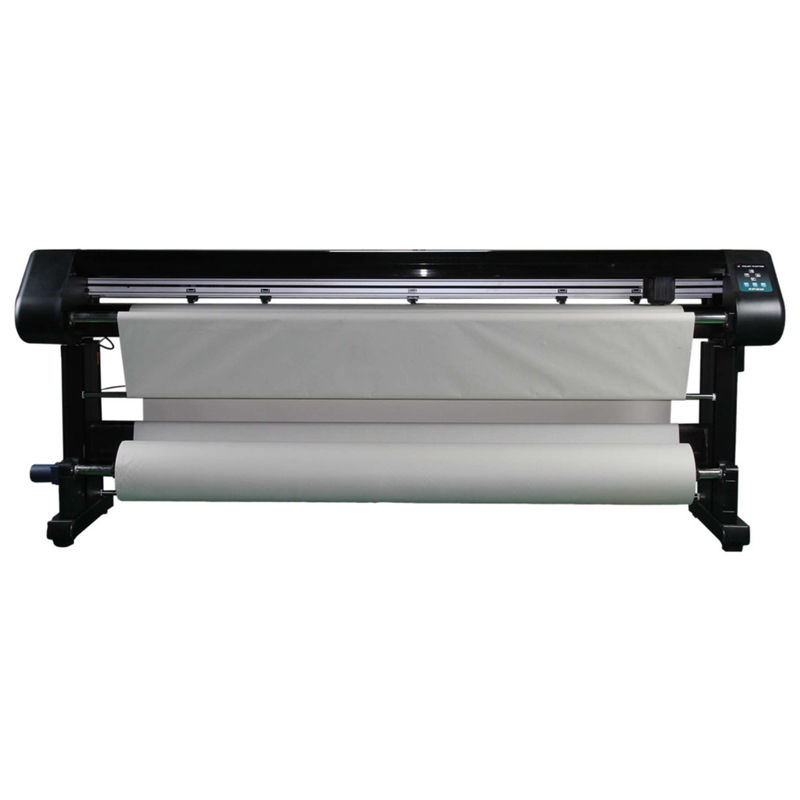

Customizable Printing Resolution CAD Plotter for Large 190cm x 72inch Paper Patterns with Continuous Ink Cartridge

Name: Customizable Printing Resolution CAD Plotter for Large 190cm x 72inch Paper Patterns with Continuous Ink Cartridge
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                customizable CAD plotter for large paper, large format inkjet plotter with warranty, 190cm wide printing resolution plotter


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	190cm 72inch CAD Paper Pattern Graph Contour Fast Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL	Model:	EP20-190

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	190cm 72inch CAD Paper Pattern Graph Contour Fast Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL
Model:	EP20-190

Product Description

Customizable Printing Resolution CAD Plotter for Large 190cm x 72inch Paper Patterns

Product Overview

190cm 72inch CAD Paper Pattern Graph Contour Fast Printing Plotter Inkjet CAD Plotter

Main Features

High-speed Servo Control with Full Closed-loop Positioning
Independent Output Manager with File Background Automatic Queuing Printing
Advanced SOPC Technology Support
Breakpoint Resume Function for Reliable Data Transmission
Two Directions High Speed Printing
Super EPSON Ink Box with Big Capacity Continuous Ink Supply
Easy Ink Addition Operation - No Ink Box Replacement Required
Environmentally Friendly and Economical Operation

Technical Specifications

Parameter	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Additional Technical Details

Printing Speed: Two-way high speed 120 ㎡/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600DPI (Customizable)
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Paper Handling: Unattended automatic paper receiving and feeding
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, durable
Machine Structure: Die standardized metal structure, high precision and long life
Output Center: Supports manual or automatic printing, optional ink-saving mode, supports online printing
File Format: HP-GL
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%--85% RH (With no Condensation)

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research and development, production, sales and service of automation equipment for the clothing, bags and shoes industries.

As a high-tech enterprise and software enterprise in Hubei Province, we are committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Our mission is "changing traditional industries with high technology" through innovative design and advanced manufacturing.

Packaging & Delivery

Industry Exhibitions

Certifications & Quality Standards

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Products are usually packed in wooden cases according to export standards, and we can customize packaging according to your specific requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize products according to your specific requirements and applications.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship within 2-4 days, while customized solutions require 5-7 days for production and delivery.
