Highlight:
aluminum countertops PVC board cutter
, flatbed template clothing cutter
, sewing pattern plotter cutter
Condition: |
New |
Applicable Industries: |
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Hot Product 2019 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
PVC Board Template Sewing Pattern Cutter Clothing Cutter Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1750*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

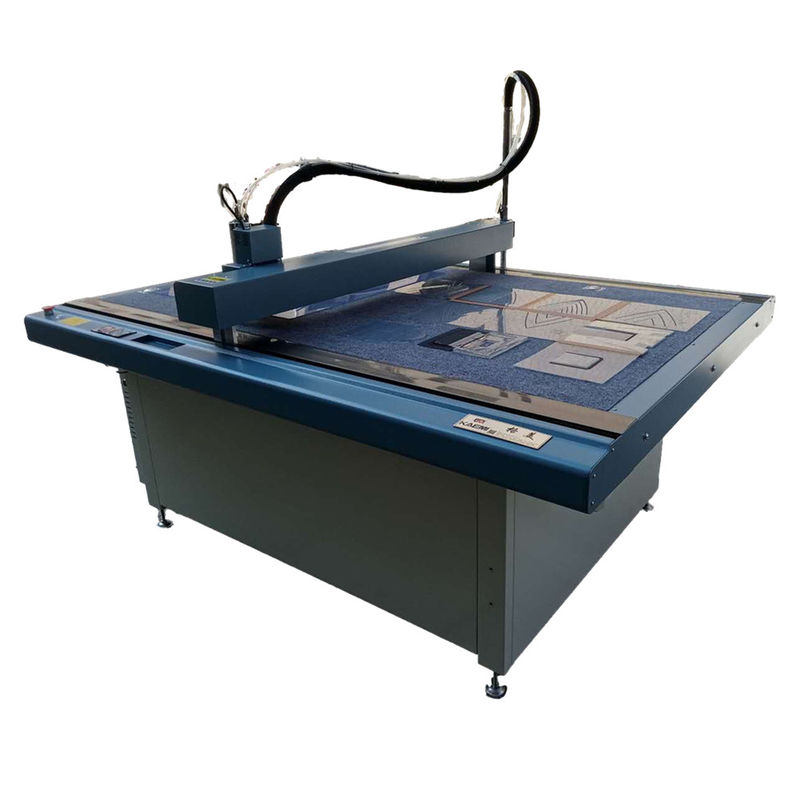

All Aluminum Countertops PVC Board Template Sewing Pattern Cutter Clothing Cutter Plotter
Product Overview
1512 New PVC Board Template Sewing Pattern Cutter Clothing Cutter Plotter - Advanced automated cutting solution for garment, luggage, and footwear industries.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Key Features
- Pneumatic Fixation Technology of High Efficiency Template
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
- Compatible with various CAD software
- Design while the machine is cutting
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Packaging & Delivery
Industry Exhibitions
Certifications & Quality Standards
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
