Highlight:
epoxy resin cutting machine for paper boxes
, flatbed template cutter for garments
, milling machine for garment industry
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machines |
Product Name: |
PVC PET Paper Board Fiber Board Epoxy Resin Cutting Milling Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Scope: |
1500*900mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

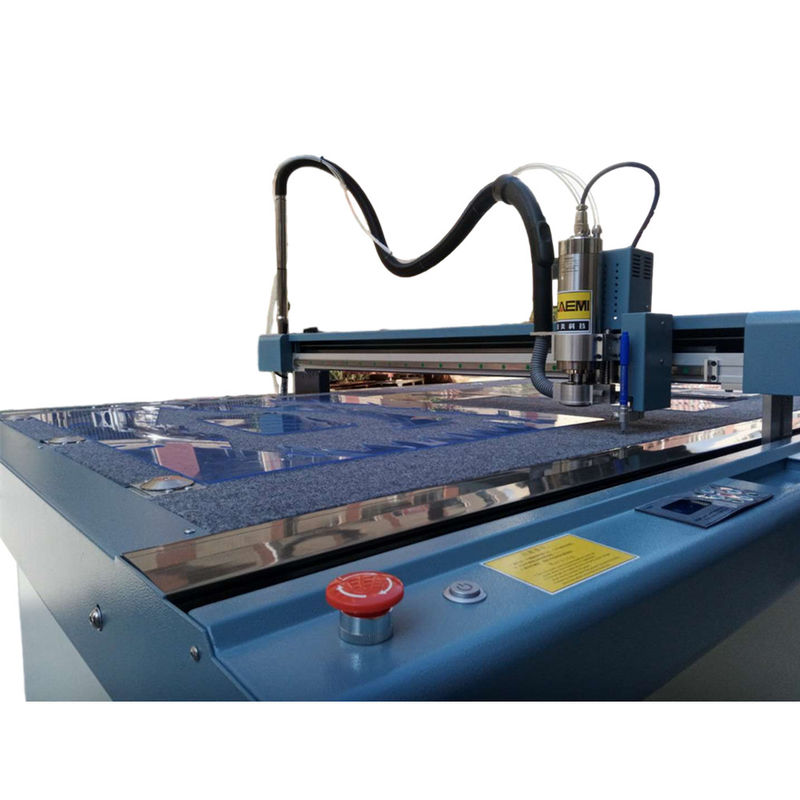

Epoxy Resin Cutting Milling Machine for Garment Industry
Product Overview
PVC PET Paper Board Fiber Board Epoxy Resin Cutting Milling Machine Garment Cutter designed for precision cutting in the garment industry.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Product Features
- Compatible with various CAD software
- Design while the machine is cutting
- Pneumatic Fixation Technology of High Efficiency Template
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
