Highlight:
USB cutting milling machine
, large format template cutter
, internet access milling machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Data Transmission Interface: |
USB/Internet Access |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
2000*1770*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |
Product Name: |
Cutting Milling Apparel PVC Sewing Pattern Board Cutter |

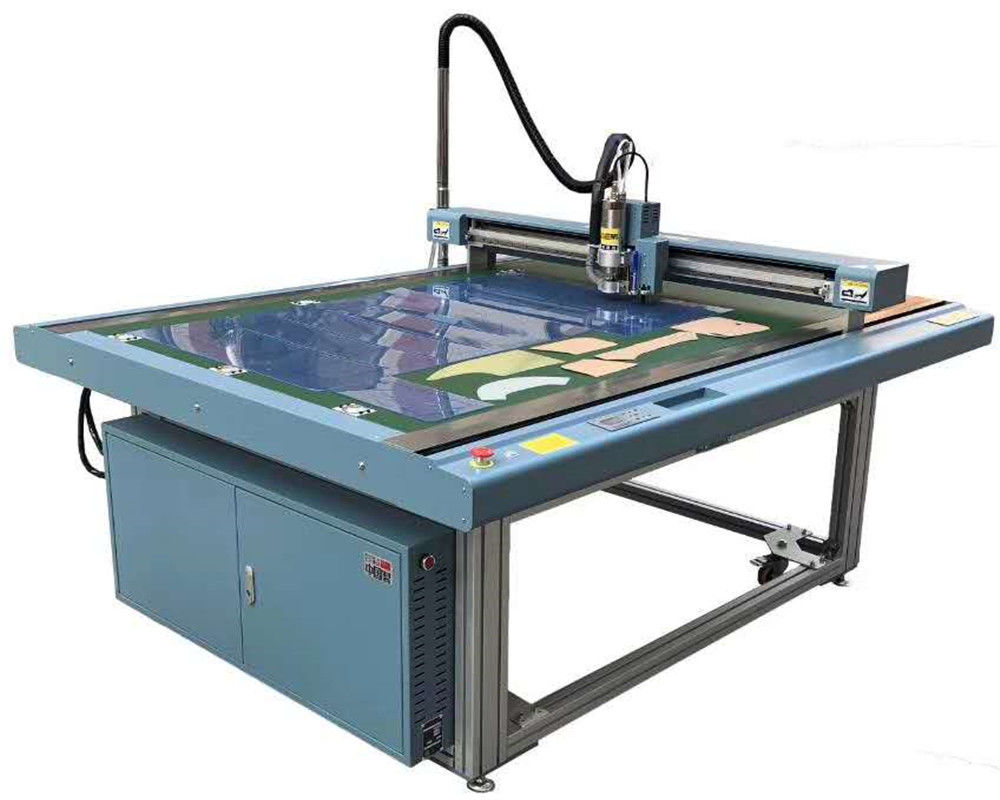

Data Transmission Interface USB/Internet Access 1200*1500mm Cutting Milling Machine
Product Overview
1200*1500mm Cutting Milling Area Apparel PVC Sewing Pattern Board Cutter designed for precision cutting and milling applications in garment, luggage, and footwear industries.
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
2000*1570*1100 |
2000*1770*1100 |
2300*1770*1100 |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Key Features
- All-aluminium Profile Fuselage: Compact and reasonable design for enhanced stability
- Smart Accidental Power Off/Power Cut Data Recovery System: Prevents material waste during power interruptions
- One Key Intelligent Fixture with Multi-point Zone Adsorption System
- Multi-layer at One-time Cutting capability
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
- Compatible with various CAD software
- Design while the machine is cutting functionality
Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. The company has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates.
Packaging & Delivery
Products are packed in wooden cases according to export standards or customer requirements.
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically take 2-4 days, while custom orders require 5-7 days.
