Highlight:
acrylic paper pattern template
, flatbed template cutter tools
, driller cut milling sheet
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Paper Pattern Template Sheet Milling Cutting Machine Plotter Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

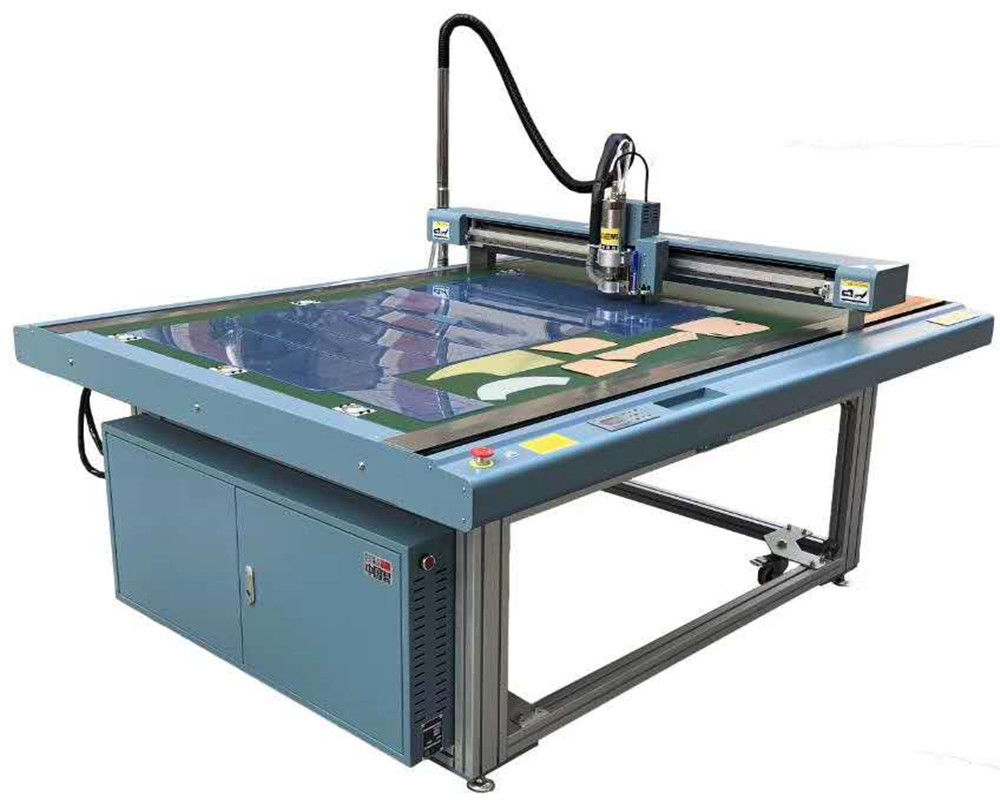

Paper Pattern Template Sheet Milling Cutting Machine
Professional CAD garment cutter plotter designed for precision milling, cutting, and drilling of paper patterns, templates, and various sheet materials including acrylic, PVC, and PET.
Key Features & Innovations
- All-aluminum profile fuselage for compact, stable construction
- Smart power failure recovery system prevents material waste
- One-key intelligent fixture with multi-point zone adsorption
- Multi-layer cutting capability in single operation
- Integrated floating pressure foot with vacuum cleaning technology
- Flexible cutting start points and sequence modification system
- Independent templates editing and designing system
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimensions |
2000*1570*1100mm |
2000*1770*1100mm |
2300*1770*1100mm |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
1.5mm-6.0mm |
| Materials |
PVC, PP, POM, Acrylic, PET, Kraft paper |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication |
USB/RJ45 Ethernet |
| Buffer Memory |
1M/8M/32M |
| File Formats |
DXF/HPGL/GPGL/PLT |
| Control Panel |
9 Keys with LED Display |
| Driver System |
Moons Motor driver with high-accuracy lead rail |
| Power Supply |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fastening System |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water/Air-cooled, 5000-24000 RPM |
| Waste Elimination |
220V/1.4KW Industrial 15L Vacuum Cleaner |
Product Gallery
Packaging & Shipping
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
How do you pack these products?
Products are typically packed in wooden cases according to export standards, with custom packaging available upon request.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
What is your lead time?
Standard models: 2-4 days; Custom orders: 5-7 days.
