Highlight:
405 kg automatic flatbed cutter
, automatic paper pattern cutter
, flatbed inkjet printing plotter
Type: |
Inkjet Printer |
Print Dimension: |
1200*900 |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1700*1570*1100mm |
Weight: |
405 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Ink Box Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
Hot Product 2019 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Nam: |
Inkjet Printing Flatbed Paper Pattern Cutter Inkjet Cutter Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1700*1570*1100mm |

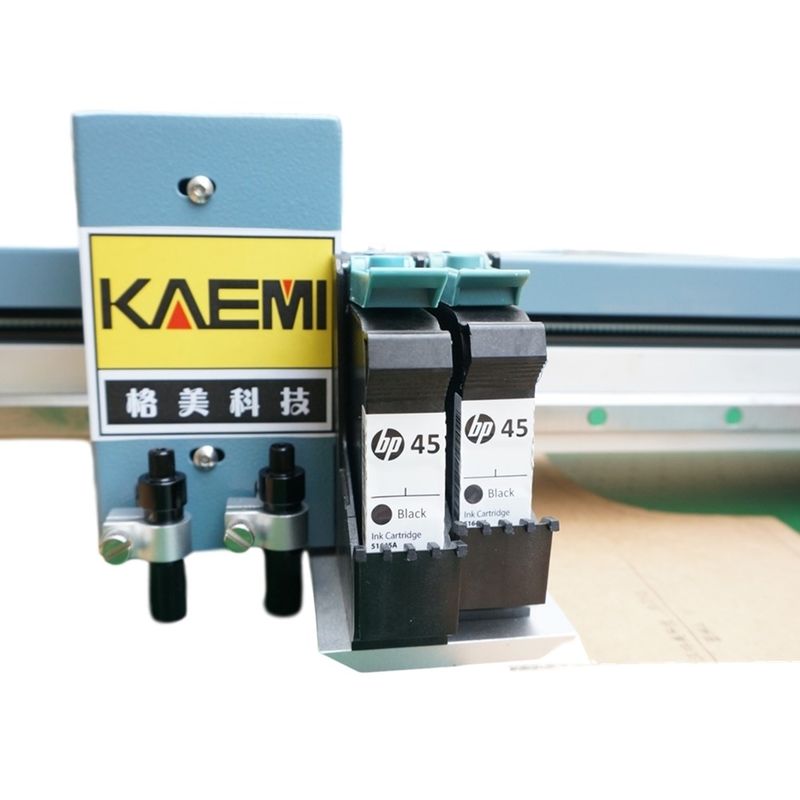

405 KG Automatic Grade Flatbed Paper Pattern Cutter Inkjet Printing Plotter
1209 Cutting Area Inkjet Printing Flatbed Paper Pattern Cutter Inkjet Cutter Plotter
Main Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
Technical Specifications
| Model |
GM-1209P5 |
GM-1509P5 |
GM-1510P5 |
GM-1512P5 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1700*1570*1100 |
2000*1570*1100 |
2000*1570*1100 |
2000*1770*1100 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Show
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
