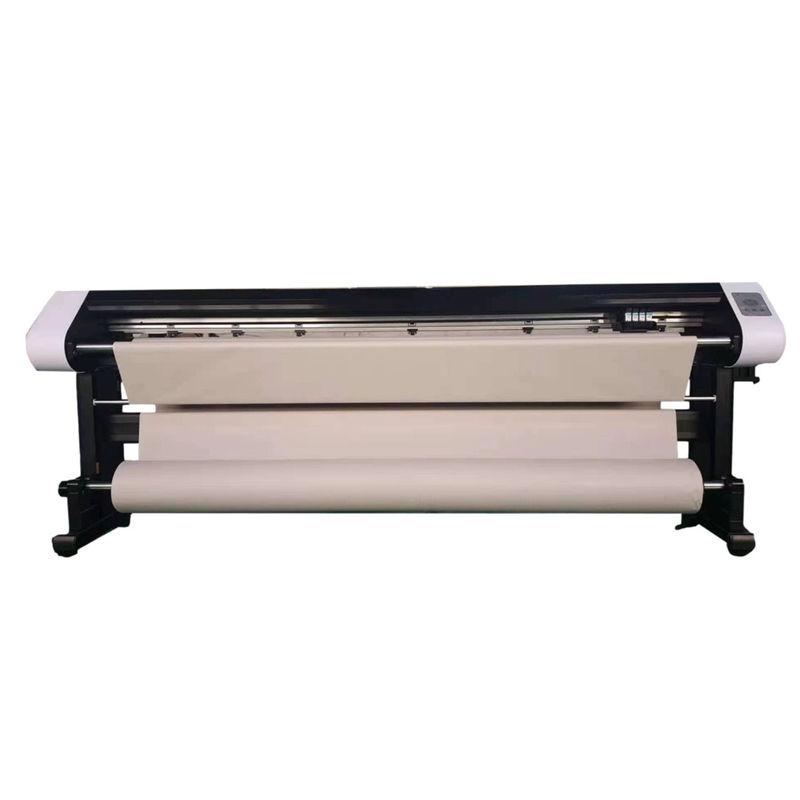

Kraft Printing CAD Inkjet Plotter with 220V/50Hz Power, 1650mm to 2050mm Cutting Size and HP45 Ink Cartridge

Name: Kraft Printing CAD Inkjet Plotter with 220V/50Hz Power, 1650mm to 2050mm Cutting Size and HP45 Ink Cartridge
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,069.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Kraft printing CAD inkjet plotter, 220V large format inkjet plotter, contour cutting plotter with warranty


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Pattern Cutting Plotter Inkjet Pattern Graph Contour Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm	Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge	Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Pattern Cutting Plotter Inkjet Pattern Graph Contour Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm
Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL

Product Description

Kraft Printing CAD Inkjet Pattern Graph Contour Cutting Plotter

High-performance CAD inkjet paper pattern cutting plotter with contour printing capabilities, designed for industrial applications in clothing, bags, and footwear manufacturing.

Main Features

High-speed servo control with full closed-loop positioning
Independent output manager with background automatic queuing printing
Advanced SOPC technology with breakpoint resume function
Automatic online printing capability
2, 3, or 4 printing heads optional
Automatic nozzle cleaning before printing
Hidden infrared precise paper feeding system
Unattended automatic paper receiving and feeding

Technical Parameters

Type	Double Spray	Three Spray	Four Spray
Product Model	B-165-2/B-185-2/B-205-2	B-160-3/B-180-3/B-200-3	B-155-4/B-175-4/B-195-4
Printing Width (cm)	165/185/205	160/180/200	155/175/195
Feeding Paper Width (cm)	170/190/210	170/190/210	170/190/210
Printing Speed	93 ㎡/h	131 ㎡/h	163 ㎡/h

Additional Specifications:

Printing format: HPGL drawing language, compatible with domestic and international CAD software
Print resolution: 150-600DPI
Nozzle type: HP45A
Line quality: Clear, smooth, no seam, optional 1-8 lines
Paper loading: Front heightening device supports paper rolls up to 28cm diameter
Paper feeding: Continuous 700 meters without deviation
Print media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication interface: Network port, multiple computers can separately control printing
Power supply: 220V/50Hz
Button panel: Press key operation, simple, convenient, durable
Machine structure: Die standardized metal structure, high precision and long life

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries.

As a high-tech enterprise certified by Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines with multiple software copyright and patent certificates.

Packaging & Delivery

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Spot goods typically take 2-4 days, while custom orders require 5-7 days.
