Highlight:
1500x900mm garment CAD PVC sheet
, PVC template board milling machine
, flatbed cutter for garment cutting
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machines |
Product Name: |
Garment CAD PVC Sheet Template Board Milling Cutting Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Scope: |
1500*900mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

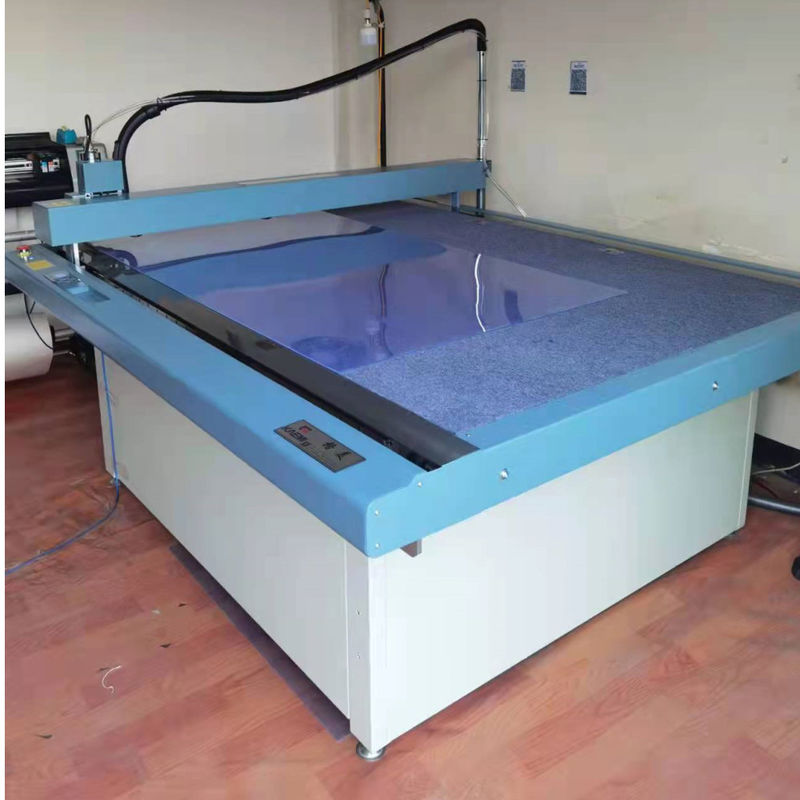

Garment CAD PVC Sheet Template Board Milling Cutting Machine 9015 Cutter
Product Overview
High-precision CAD milling and cutting machine designed for garment industry template production with 1500*900mm cutting window.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Key Features
- Compatible with various CAD software systems
- Design while the machine is cutting for maximum efficiency
- Pneumatic fixation technology for high-efficiency template processing
- Integrated floating pressure foot and vacuum cleaning technology
- Flexible modification system for cutting starting points and cutting sequence
- Independent templates editing and designing system
Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries.
Company Profile
As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. The company holds multiple software copyright and patent certificates and has developed a series of cutting machines for various industries.
Packaging & Delivery
Products are packed in wooden cases according to export standards or customer requirements.
Exhibition & Trade Shows
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases and can be packed according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
