Highlight:
PVC CAD template board
, flatbed cutter for apparel
, milling CAD garment cutter
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machines |
Product Name: |
9015 CAD Template Board PVC Sheet Milling CAD Garment Cutter Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Scope: |
1500*900mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

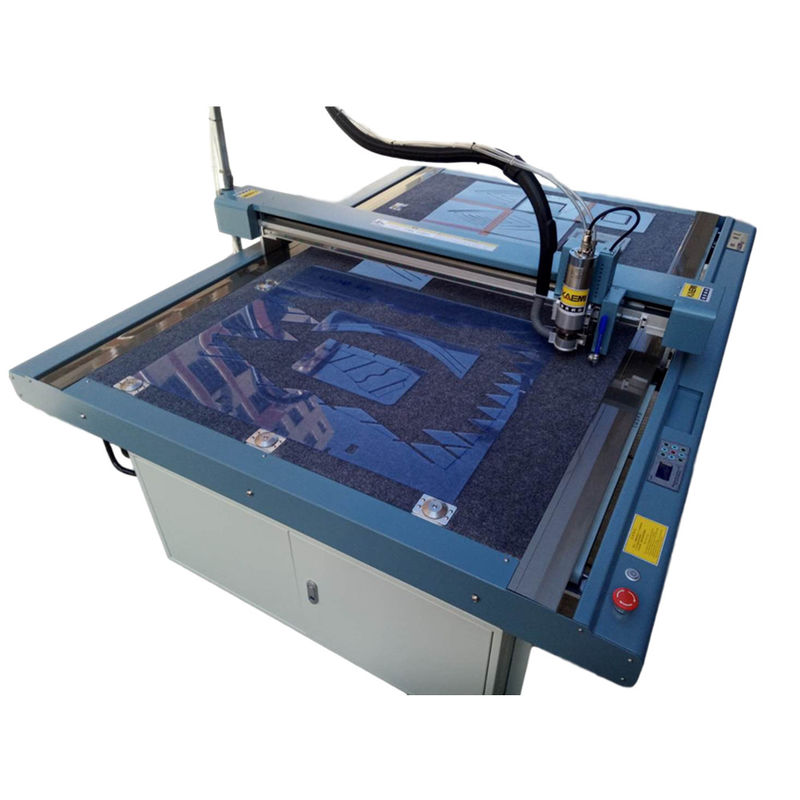

9015 CAD Template Board PVC Sheet Milling CAD Garment Cutter Plotter Apparel Cutter
Product Overview
High-precision CAD template cutting system designed for garment, bag, and shoe manufacturing industries. Features advanced milling, cutting, drilling, and plotting capabilities for various materials including PVC, PP, POM, Acrylic, PET, and Kraft board.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
1900*1450*1100mm |
1900*1750*1100mm |
2200*1750*1100mm |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
Key Features
- Pneumatic Fixation Technology for High Efficiency Template Processing
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
- Compatible with various CAD software packages
- Design while the machine is cutting for maximum productivity
- Multiple processing methods: Mill, Cut, Drill, Plot
- Multiple cutting tools: Mill-cutter, Graver, Driller, Pen
- Moons Motor driver system with high-accuracy lead rail
- Double lead rail on crossbeam for enhanced stability
Compatible Materials
PVC, PP, POM, Acrylic, PET, Kraft, and various other template materials
Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is a specialized company located in Wuhan Linkong Economic Development Zone, focusing on research, development, production, sales and service of automation equipment for clothing, bags and shoes industries. As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.
Packing & Delivery
Industry Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Products are usually packed in wooden cases according to export standards, and we can customize packaging according to your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for production.
