Flatbed Garment Sewing Board Pattern Milling Cutting Machine CAD Cutter
Product Overview
High-precision flatbed cutting machine designed for garment sewing boards, pattern milling, and CAD-controlled cutting applications with exceptional precision and efficiency.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
1900*1450*1100mm |
1900*1750*1100mm |
2200*1750*1100mm |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Repeatability Precision |
≤0.01mm |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
Key Features
- Compatible with various CAD software systems
- Design capability while machine is cutting
- Pneumatic fixation technology for high-efficiency templates
- Integrated floating pressure foot and vacuum cleaning technology
- Flexible modification system for cutting starting points and sequence
- Independent templates editing and designing system
- Multiple processing methods: Mill, Cut, Drill, Plot
- Multiple cutting tools: Mill-cutter, Graver, Driller, Pen
- High-accuracy lead rail system with double lead rail on crossbeam
Material Compatibility
PVC, PP, POM, Acrylic, PET, Kraft, and various other materials
Technical Specifications (Detailed)
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fastening System |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |

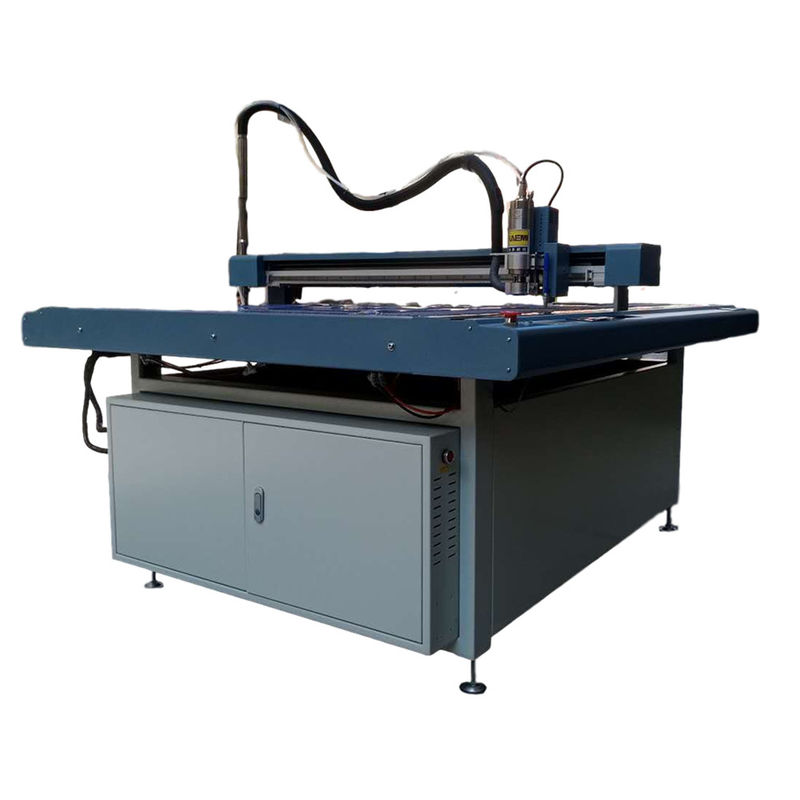

Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research and development, production, sales and service of automation equipment for the clothing, bags and shoes industries.
Company Profile
As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Our mission is "changing traditional industries with high technology" through innovative automation solutions.
Packaging & Delivery
Products are carefully packed in wooden cases according to export standards or customer requirements.
Exhibition & Trade Shows
Certifications & Quality Standards
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for production.
