Big Inkjet Paper Pattern Continuous Inkjet Printing Plotter with 220V/50Hz Power Supply and 1900mm to 2500mm Cutting Size

Name: Big Inkjet Paper Pattern Continuous Inkjet Printing Plotter with 220V/50Hz Power Supply and 1900mm to 2500mm Cutting Size
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                continuous inkjet plotter for garment, large format inkjet plotter 220V, inkjet paper pattern plotter


Condition:	New	Applicable Industries:	Garment Shops, Machinery Repair Shops, Home Use, Retail, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Big Inkjet Paper Pattern Continuous Inkjet Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL, PLT, DXF, Etc	Model:	EP20-190

Condition:	New
Applicable Industries:	Garment Shops, Machinery Repair Shops, Home Use, Retail, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Big Inkjet Paper Pattern Continuous Inkjet Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL, PLT, DXF, Etc
Model:	EP20-190

Product Description

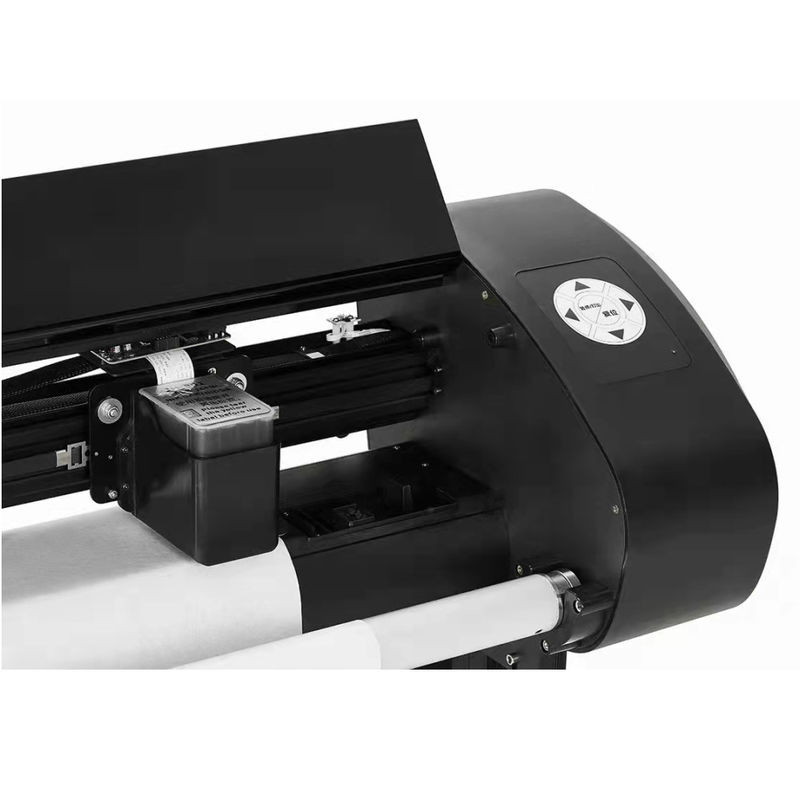

Inkjet Paper Pattern Continuous Inkjet Plotter for Garment

High-performance continuous inkjet printing plotter designed specifically for garment industry applications with 220V/50Hz power supply.

Key Features

High-speed servo control with full closed-loop positioning for accurate output
Independent output manager with file background automatic queuing printing
Advanced SOPC technology with breakpoint resume function
Two-direction high-speed printing at 120 m²/h
Super EPSON EP20L ink box with continuous ink supply system
Large capacity ink system - no ink box replacement required
Environmentally friendly and economical operation
Easy ink addition process

Technical Specifications

Product Model	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Additional Technical Parameters

Printing Speed: Two-way high speed 120 m²/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600 DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper rolls up to 28cm diameter
Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, durable
Machine Structure: Die standardized metal structure, high precision and long life
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%--85% RH (With no Condensation)

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries.

As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, and footwear enterprises. The company has developed a series of cutting machines and obtained numerous software copyright and patent certificates.

Packaging & Delivery

Certifications & Quality Assurance

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
