Highlight:
Smart CAD paper box template
, Graph contour drawing board
, Flatbed template cutter 400KG
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor |
Warranty: |
1 Year, For The Whole Machines |
Product Name: |
Paper Pattern Graph Contour Drawing Template Board Milling Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

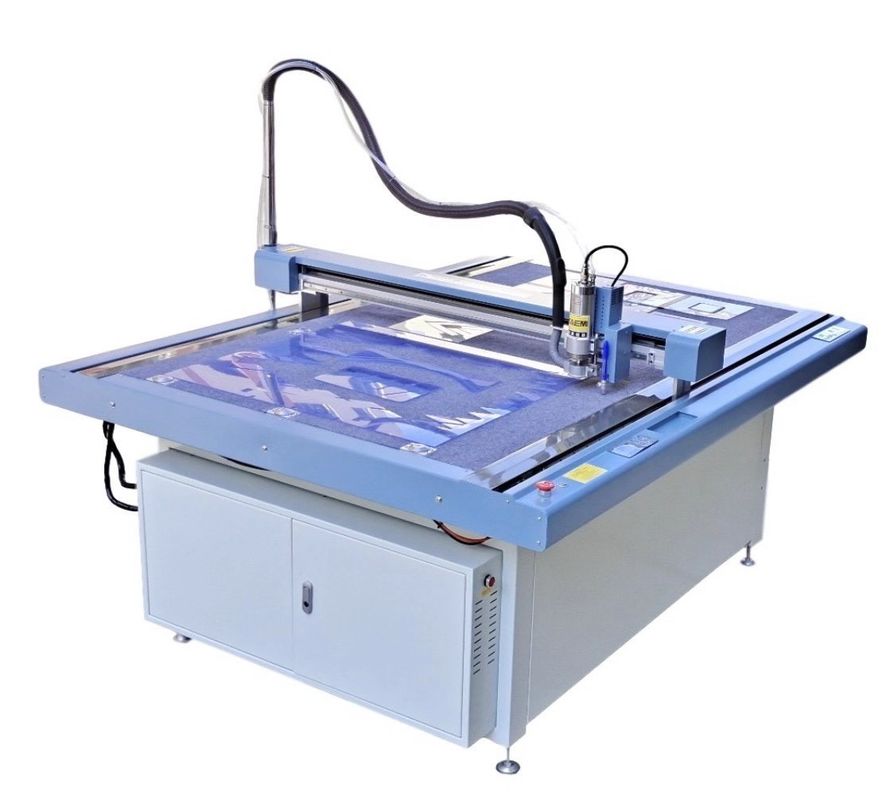

Smart CAD Paper Boxes Graph Contour Drawing Template Board Milling Cutter
Product Overview
High-precision CAD-compatible milling cutter system designed for industrial template cutting applications with 400KG weight capacity.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
1900*1450*1100mm |
1900*1750*1100mm |
2200*1750*1100mm |
Key Performance Features
- Compatible with various CAD software systems
- Design capability while machine is cutting
- Cutting speed: 500-1500mm/s
- Cutting thickness: ≤1.5mm-6.0mm
- Materials: PVC, PP, POM, Acrylic, PET, Kraft, etc.
- Processing methods: Mill, Cut, Drill, Plot
- Cut tools: Mill-cutter, Graver, Driller, Pen
- Repeatability precision: ≤0.01mm
- Software resolution: 0.025mm/0.01mm/0.1mm (Optional)
- Communication port: USB/RJ45 Ethernet
- Buffer memory size: 1M/8M/32M
- File formats: DXF/HPGL/GPGL/PLT compatible
- Control panel: 9 Keys and LED Display
- Driver system: Moons Motor driver with high-accuracy lead rail
- Supply voltage: AC 220V/110V±10%, 50Hz/3.5KW
- Fuse value: 30A/35A
- Working environment: -30~55℃ or -22~131℉
- Fasten system: Vacuum/Clamping
- Mill motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
- Waste elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner
Advanced System Features
- Pneumatic fixation technology for high efficiency templates
- Integrated floating pressure foot and vacuum cleaning technology
- Flexible modification system for cutting starting points and sequence
- Independent templates editing and designing system
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We specialize in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.
As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Our company carries the mission of "changing traditional industries with high technology" and holds multiple software copyright and patent certificates.
Packaging & Delivery
Industry Exhibitions
Quality Certifications
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
How do you pack these products?
Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Standard products typically ship within 2-4 days, while custom orders require 5-7 days for completion.
