Highlight:
400KG PVC template board cutter
, USB flatbed template cutter
, multi-layer PVC sheet milling machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Data Transmission Interface: |
USB/Internet Access |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
2000*1770*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |
Product Name: |
6mm Template Board PVC Sheet Milling Cutter Apparel Cutter |

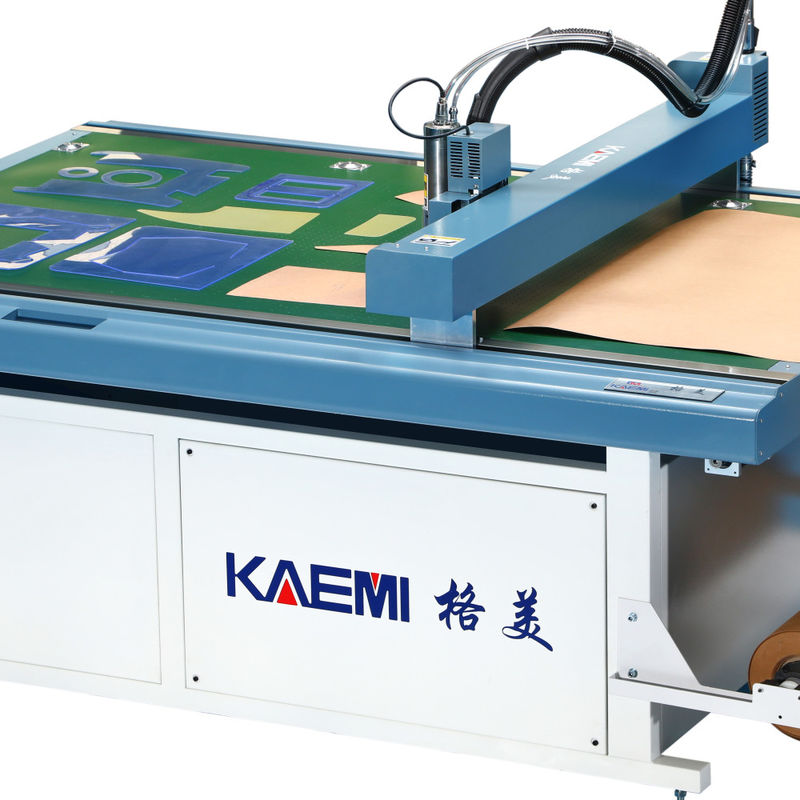

400KG Multiple Layers Template Board PVC Sheet Milling Cutter with USB/Internet Access
Product Overview
6mm Multiple Layers Template Board PVC Sheet Milling Cutter designed for apparel and industrial cutting applications. Features advanced CAD compatibility and simultaneous design capabilities during cutting operations.
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
2000*1570*1100mm |
2000*1770*1100mm |
2300*1770*1100mm |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Key Features
- All-aluminium Profile Fuselage: Compact, reasonable design for enhanced stability
- Smart Accidental Power Off/Power Cut Data Recovery System: Prevents material waste during power interruptions
- One Key Intelligent Fixture with Multi-point Zone Adsorption System
- Multi-layer at One-time Cutting capability
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. As a high-tech enterprise and software enterprise in Hubei Province, Gemei holds "information port" certification and is recognized as an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. The company combines world advanced technology with Chinese manufacturing expertise, following the design principle of "good at core, simple in shape."
Packaging & Delivery
Exhibition & Trade Shows
Certifications & Quality Standards
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for completion.
