Highlight:
1509 cad pvc sheet milling cutter
, cad paper board milling cutter
, 1509 cad flatbed garment cutting machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machines |
Product Name: |
CAD Paper Board PVC Sheet Milling Cutter Flatbed Garment Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Scope: |
1500*900mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

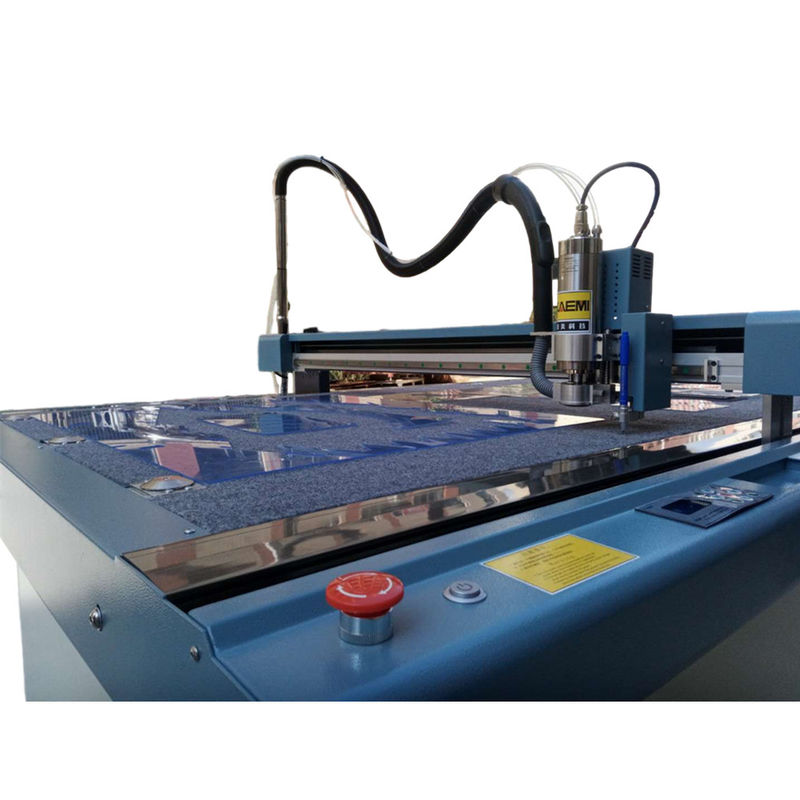

1509 CAD Paper Board PVC Sheet Milling Cutter Flatbed Garment Cutting
1509 CAD Paper Board PVC Sheet Milling Cutter for Flatbed Garment Cutter with 400KG Weight capacity, designed for precision cutting in industrial applications.
Product Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
Technical Features
- Compatible with various CAD software
- Design while the machine is cutting
- Cutting Speed: 500-1500mm/s
- Cutting Thickness: ≤1.5mm-6.0mm
- Cutting Materials: PVC, PP, POM, Acrylic, PET, Kraft, etc.
- Processing Methods: Mill, Cut, Drill, Plot
- Cut Tools: Mill-cutter, Graver, Driller, Pen
- Repeatability Precision: ≤0.01mm
- Software Resolution: 0.025mm/0.01mm/0.1mm (Optional)
- Communication Port: USB/RJ45 Ethernet
- Buffer Memory Size: 1M/8M/32M
- File Formats: DXF/HPGL/GPGL/PLT Formats Compatible
- Control Panel: 9 Keys and LED Display
- Driver System: Moons Motor driver; High-accuracy Lead Rail
- Supply Voltage: AC 220V/110V±10%, 50Hz/3.5KW
- Fuse Value: 30A/35A
- Working Environment: -30~55℃ or -22~131℉
- Fasten: Vacuum/Clamping
- Mill Motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
- Waste Elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner
Main Features
- Pneumatic Fixation Technology of High Efficiency Template
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. The company is a high-tech enterprise and software enterprise in Hubei Province, with "information port" certification and recognition as an entrepreneurship enterprise for overseas students in Wuhan City.
Packing & Delivery
Exhibition & Events
Certifications & Quality Standards
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for production.
