Highlight:
dual head HP45 inkjet plotter
, large format plotter with tungsten blade
, fast cutting inkjet printing plotter
Type: |
Inkjet Printer |
Print Dimension: |
Maximum 190cm To 250cm Width Printing Scope Sizes |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Advertising Company |
Condition: |
New |
Plate Type: |
Roll-to-Roll Printer |
Use: |
Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
220v |
Dimensions(L*W*H): |
245*65*110cm |
Weight: |
85 KG |
Warranty: |
1 Year |
Ink Type: |
Pigment Ink |
Key Selling Points: |
Large-format |
Marketing Type: |
New Product 2023 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Pump, Engine, Mother Board, Driver |
Product Name: |
HP45 Inkjet Dual Head Fast Tungsten Cutting Blade Paper Plotter |
Printing Width: |
Maximum 190cm To 250cm Printing Scope Optional |
Ink Cartridge: |
Dual Head HP45 Ink Cartridge(4 Heads Optional) |
Cutting Function: |
Yes,with Cutting Blade To Cut Down(Cannot Cut Each Paper Pattern) |
Printing Speed: |
80-220 Sqm/h, Depends On Real Printing File |
Cutting Blade: |
Fine Quality Tungsten Cutting Blade |
Connection Port: |
Both USB And LAN Port(Ethernet Port) |
Applicable Paper Rolls: |
Printing:40 To 250gsm; Cutting 70-150gsm |
Compatible Files Formats: |
All CAD File Formats Including PLT, DXF, HGPL, Etc |
Applicable Fields: |
Garments, Shoes, Bags, Furniture, Car Interiors, Etc |

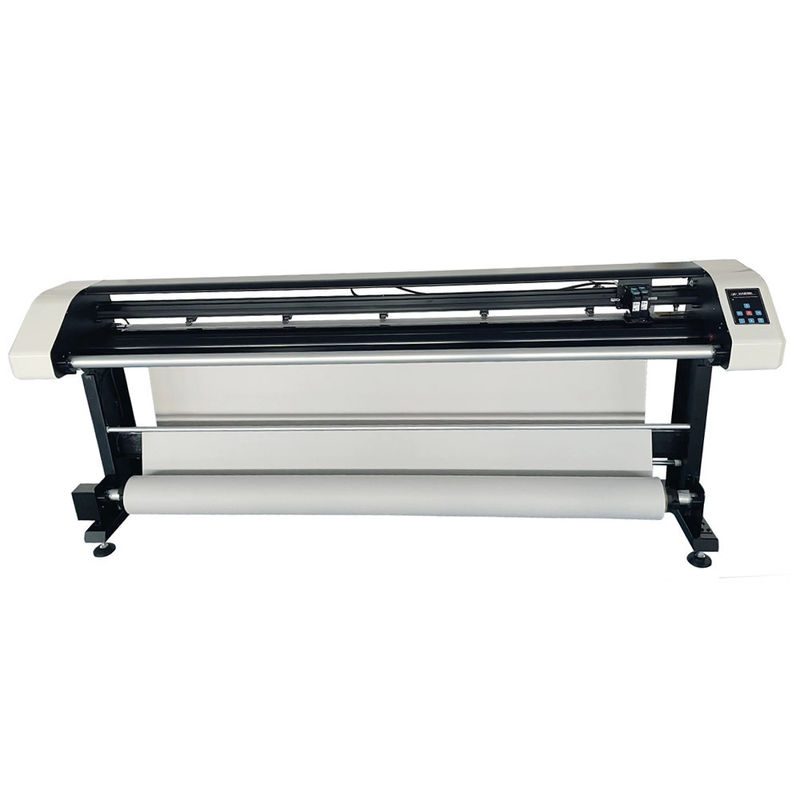

Dual Head HP45 Inkjet Printing Plotter with Fast Tungsten Cutting Blade
High-performance HP45 inkjet printing plotter featuring dual printing heads and integrated tungsten cutting blade for efficient paper plotting applications.
Key Features
- High-speed servo control with full closed-loop positioning for accurate output
- Independent output manager supporting file background automatic queuing printing
- Advanced SOPC technology implementation
- Breakpoint resume functionality for reliable data transmission and printing
- Automatic printing online with integrated cutting knife
- Two, three, or four printing heads configuration options
Size Information
Hot selling sizes include 190cm (72 inch) and 210cm (80 inch) printing width models.
For 190cm width version, compatible with paper rolls within 190cm including 190/180/160/120cm width versions.
Model Size Chart
| Dual Printing Heads Type |
GMH2-190-2 |
GMH2-210-2 |
GMH2-230-2 |
GMH2-250-2 |
| Four Printing Heads Type |
GMH2-190-4 |
GMH2-210-4 |
GMH2-230-4 |
GMH2-250-4 |
Technical Specifications
| Specification |
Details |
| Printing Width |
According to model number, actual printing width varies (e.g., GMH1-190-2: 185-190cm, GMH1-190-4: 180-185cm) |
| Feeding Paper Width |
5 to 10cm bigger than maximum printing width |
| Printing Speed |
Two-way High Speed: 93 ㎡/h, 131 ㎡/h, 163 ㎡/h |
| Printing Format |
HPGL Drawing Language, compatible with domestic and foreign CAD software, customizable special formats |
| Print Resolution |
150-600DPI |
| Type of Nozzle |
HP45A |
| Cutting Function |
Integrated tungsten cutting blade (cannot cut individual patterns) |
| Line Quality |
Clear, smooth, no seam, optional 1-8 lines |
| Nozzle Cleaning |
Automatic cleaning before printing |
| Paper Loading |
Front heightening device supports paper rolls up to 28cm diameter |
| Paper Feeding |
Hidden infrared precise paper feeding system, continuous 700 meters without deviation |
| Paper Handling |
Unattended automatic paper receiving and feeding |
| Print Media |
40-80g ordinary roll printing paper; 80-250g single brown paper |
| Communication Interface |
Network port + USB, multiple computers can separately control printing |
| Power Supply |
220V/50Hz |
| Control Panel |
Press key operation, simple, convenient, durable |
| Machine Structure |
Die standardized metal structure, high precision and long life |
| Output Center |
Supports manual or automatic printing, optional ink-saving mode, supports online printing |
Available Models
Three Main Styles Available
1. Normal dual head/4 head HP45 ink cartridge printing plotter
2. Continuous refill big capacity ink cartridge EPSON head printing plotter
3. Combo type dual head HP45 ink cartridge printing and cutting plotter (can cut individual paper patterns)
190cm to 250cm Width - 1 Pieces (MOQ) 2-4 Heads
190cm to 250cm Width - 1 Piece (MOQ) 1 Big Head
125cm to 220cm Width - 1 Piece (MOQ), Cutting + Printing
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone, specializing in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.
As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has obtained multiple software copyright and patent certificates.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10+ years of experience.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with custom packaging available upon request.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically ship in 2-4 days, while custom orders take 5-7 days.
