Highlight:
100KG continuous ink tank plotter
, large format plotter with cutting function
, refillable ink tank paper pattern plotter
Condition: |
New |
Applicable Industries: |
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor |
Warranty: |
1 Year, Mother Board And Drivers |
Product Name: |
Printing Plotter Big Continuous Refillable Ink Tank Plotter |
Power: |
300-400W |
Printing Resolution: |
150-600 DPI |
Connection Port: |
Network/LAN Port |
Printing Paper: |
40-80gsm White Plotter Paper; 80-250gsm Kraft Paper |
Ink Cartridge: |
Refillable 230ml Big Ink Cartridge |
Cutting Function: |
Yes, With Cutting Blade To Cut Down Paper After Printing |
Printing Speed: |
120sqm/h Dual Way Fast Printing |
Application: |
Paper Pattern, Graph,Contour Printing |
Support Files Formats: |
HPGL, PLT, DXF, HPGL Language, Compatible With Various CAD Softwares |

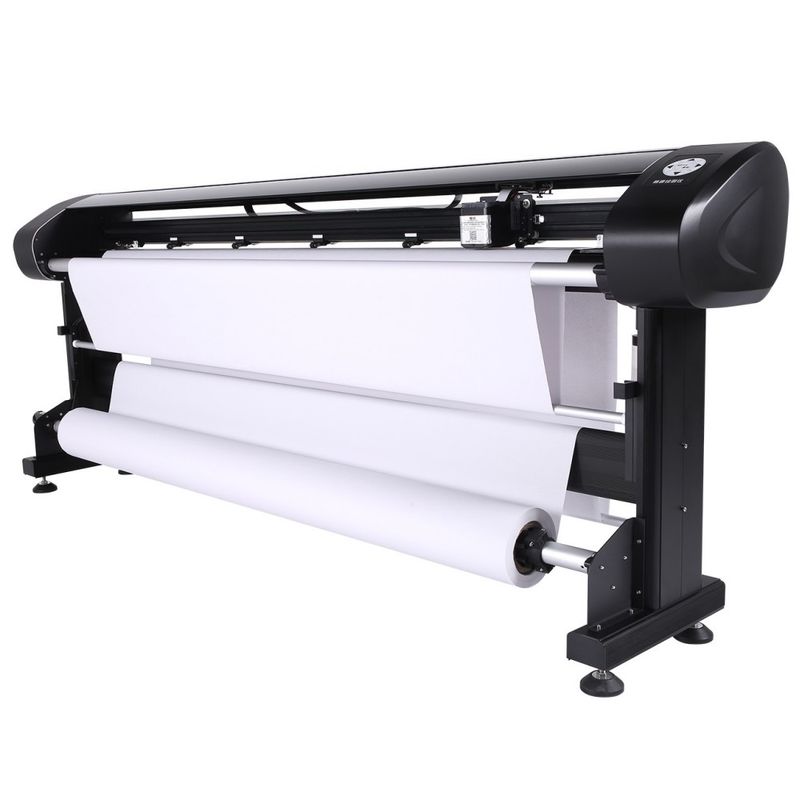

100KG Big Continuous Refillable Ink Tank Paper Pattern Plotter with Cutting Function
Product Overview
This cutting and printing plotter with big continuous refillable ink tank offers exceptional value for paper pattern plotting applications. The EP806 Big Ink Cartridge Printing Plotter delivers outstanding cost performance with advanced features.
- Large 230ml refillable ink cartridges (compared to standard HP45 type printing plotters with only 42ml capacity)
- High-quality EPSON TX806 printing head with fast dual-way printing capability
- High-speed performance: 120 square meters per hour printing speed
- Quality triangle cutting blade for automatic paper cutting after printing
Product Features
Product Specifications
| Specification |
EP806-130 |
EP806-170 |
EP806-190 |
EP806-210 |
EP806-230 |
EP806-250 |
| Plot width |
125cm |
165cm |
185cm |
205cm |
225cm |
245cm |
| Paper width |
130cm |
170cm |
190cm |
210cm |
230cm |
250cm |
| Plot speed |
90 square meters per hour |
| File format |
HPGL language, compatible with various CAD software |
| Cutting function |
Auto cutting after plotting one marker |
| Resolution |
150-600DPI |
| Print head type |
Epson TX806 |
| Print head safety |
Inktruck reset automatic protection |
| Ink tank capacity |
230ml |
| Line quality |
Clean, smooth, and adjustable line thickness |
| Clean print head |
Auto cleaning print head |
| Load paper system |
Front loading, Maximum roll diameter 28cm |
| Feed paper system |
Hidden infrared precision paper system, accurate and efficient |
| Take-up paper system |
Take-up plotting mode or drop-on-floor plotting mode |
| Paper compatibility |
White plotter paper 40-80 gsm, Kraft paper 80-250 gsm |
| Interface |
Network (LAN Port or Ethernet Port) |
| Power supply |
220V/50Hz |
| Panel |
Simple, convenient and durable |
| Machine structure |
Aluminum alloy structure, high machine precision, long lifetime |
| Software center |
Drive-free, fully automatic online, support multiple independent control |
Product Configuration
230ml Refillable Big Ink Cartridge
Triangle Blade to Cut Down Paper
High Quality & Speed Motor
Manufacturer Profile
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. With deep understanding of China's garment, luggage and footwear industry, GM series cutting machines combine international technology with Chinese manufacturing excellence.
Our design philosophy focuses on "good at core, simple in shape" principles. After introducing the first continuous drum cutter in central China, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI leverages the world manufacturing trend transferring to central China, maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We believe "innovation" is the eternal driving force behind GEMEI's development.
Company Certifications
CCTV Listed Brand
National High Tech Enterprise
Patents and Certificates
Product Packaging
Plotter Quality Wooden Case
Flatbed Cutter Wooden Case
CNC Digital Cutter Big Wooden Case
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for over 10 years.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
