Home > Products > Large Format Inkjet Plotter > Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function

Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,760.00/sets 1-2 sets

Get Best Price
Product Details
Highlight:

230ml refillable ink tank plotter

,

large format paper plotter PLT

,

continuous ink tank plotter

Condition:
New
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):
100
Showroom Location:
Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Motor, Mother Board And Drivers
Warranty:
1 Year, 1 Year Warranty For Full Machine
Product Name:
230ml Big Refillable Ink Tank Paper Plotter Inkjet Printing Plotter
Power:
300-400W
Printing Resolution:
150-600 DPI
Connection Port:
Network/LAN Port
Printing Paper:
40-80gsm White Plotter Paper; 80-250gsm Kraft Paper
Ink Cartridge:
Refillable 230ml Big Ink Cartridge
Cutting Function:
Yes, With Cutting Blade To Cut Down Paper After Printing
Printing Speed:
120sqm/h Dual Way Fast Printing
Application:
Paper Pattern, Graph,Contour Printing
Support Files Formats:
HPGL, PLT, DXF, HPGL Language, Compatible With Various CAD Softwares
Condition:
New
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):
100
Showroom Location:
Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Motor, Mother Board And Drivers
Warranty:
1 Year, 1 Year Warranty For Full Machine
Product Name:
230ml Big Refillable Ink Tank Paper Plotter Inkjet Printing Plotter
Power:
300-400W
Printing Resolution:
150-600 DPI
Connection Port:
Network/LAN Port
Printing Paper:
40-80gsm White Plotter Paper; 80-250gsm Kraft Paper
Ink Cartridge:
Refillable 230ml Big Ink Cartridge
Cutting Function:
Yes, With Cutting Blade To Cut Down Paper After Printing
Printing Speed:
120sqm/h Dual Way Fast Printing
Application:
Paper Pattern, Graph,Contour Printing
Support Files Formats:
HPGL, PLT, DXF, HPGL Language, Compatible With Various CAD Softwares
Product Description

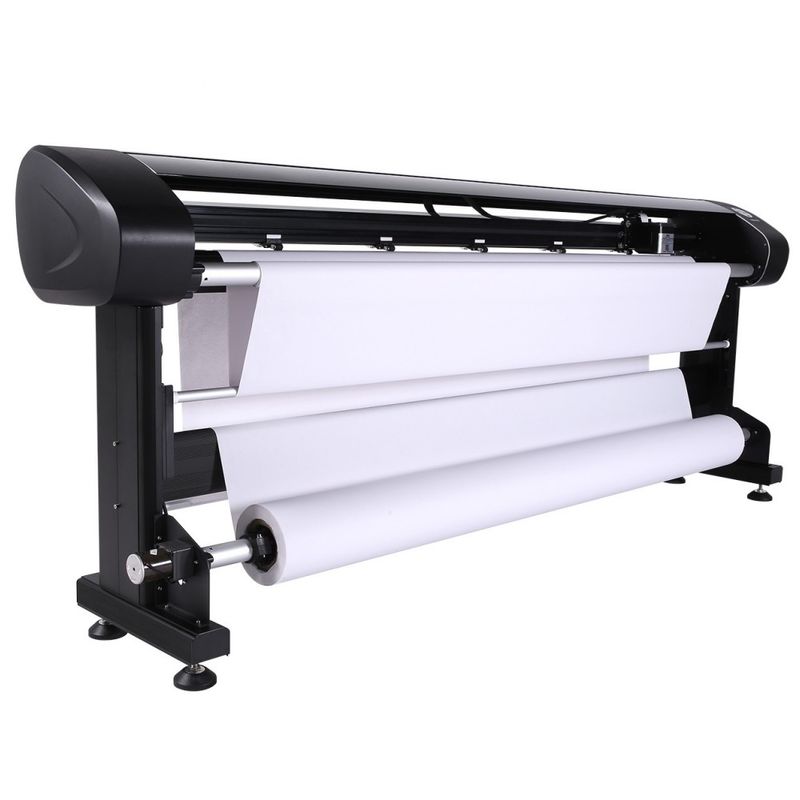

EP806 Big Ink Cartridge Printing Plotter
This high-performance inkjet printing plotter features large 230ml refillable ink tanks and delivers exceptional value with professional-grade output quality.
Key Features
  • Large 230ml refillable ink cartridges (compared to standard 42ml HP45 cartridges)
  • High-quality EPSON TX806 printing head for reliable performance
  • Fast dual-way printing at 120 square meters per hour
  • Quality triangle cutting blade for automatic paper cutting after printing
Product Images
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 0Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 1Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 2Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 3Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 4Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 5Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 6Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 7Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 8Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 9
Technical Specifications
Model #Plot WidthPaper Width
EP806-130125cm130cm
EP806-170165cm170cm
EP806-190185cm190cm
EP806-210205cm210cm
EP806-230225cm230cm
EP806-250245cm250cm
Plot Speed: 90 square meters per hour
File Format: HPGL language, compatible with various CAD software
Cutting Function: Auto cutting after plotting one marker
Resolution: 150-600DPI
Print Head Type: Epson TX806
Print Head Safety: Inktruck reset automatic protection
Ink Tank: 230ml capacity
Line Quality: Clean, smooth, and adjustable line thickness
Clean Print Head: Automatic cleaning system
Load Paper System: Front loading, maximum roll diameter 28cm
Feed Paper System: Hidden infrared precision paper system
Take-up Paper System: Take-up plotting mode or drop-on-floor plotting mode
Paper Compatibility: White plotter paper 40-80 gsm, Kraft paper 80-250 gsm
Interface: Network (LAN Port or Ethernet Port)
Power Supply: 220V/50Hz
Panel: Simple, convenient and durable
Machine Structure: Aluminum alloy construction for high precision and long lifetime
Software Center: Driver-free, fully automatic online, supports multiple independent control
Standard Configuration
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 10
230ml Refillable Big Ink Cartridge
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 11
Triangle Blade for Paper Cutting
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 12
High Quality & Speed Motor
About GEMEI
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Our GM series combines the essence of Chinese and foreign technologies, featuring innovative designs that emphasize core functionality and simple form.
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 13
CCTV Listed Brand
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 14
National High Tech Enterprise
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 15
Patents and Certificates
Packaging Options
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 16
Plotter Quality Wooden Case
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 17
Flatbed Cutter Wooden Case
Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and Cutting Function 18
CNC Digital Cutter Big Wooden Case
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer both standard sizes commonly used in the industry and custom solutions based on your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for completion.
