Home > Products > Large Format Inkjet Plotter > Affordable Original Clothing Paper Pattern Plotter with Optional 150-600DPI Resolution and 1650mm to 2050mm Cutting Size

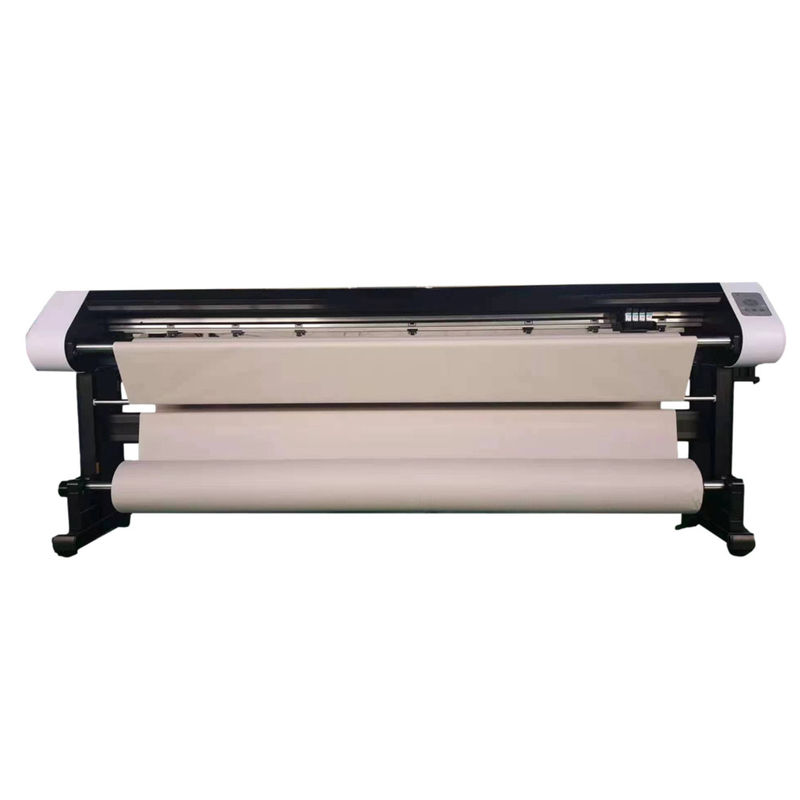

Affordable Original Clothing Paper Pattern Plotter with Optional 150-600DPI Resolution and 1650mm to 2050mm Cutting Size

Name: Affordable Original Clothing Paper Pattern Plotter with Optional 150-600DPI Resolution and 1650mm to 2050mm Cutting Size
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,069.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                original clothing paper pattern plotter, large format inkjet plotter with warranty, affordable pattern plotter printing resolution


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Original Manufacturer Clothing Paper Pattern Plotter Inkjet Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm	Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge	Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Original Manufacturer Clothing Paper Pattern Plotter Inkjet Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm
Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL

Product Description

Affordable Original Clothing Paper Pattern Plotter with Optional Printing Resolution

High-Quality Original Manufacturer Clothing Paper Pattern Plotter

Professional inkjet plotter designed for clothing pattern plotting with exceptional value and performance.

Main Features

High-speed Servo Control with full closed-loop positioning
Independent Output Manager with background automatic queuing printing
Advanced SOPC technology for reliable performance
Breakpoint resume function for reliable data transmission
Automatic online printing capability
2, 3, or 4 printing heads optional configurations

Technical Parameters

Type	Product Model	Printing Width (cm)	Feeding Paper Width (cm)	Printing Speed
Double Spray	B-165-2/B-185-2/B-205-2	165/185/205	170/190/210	Two-way high speed 93 ㎡/h
Three Spray	B-160-3/B-180-3/B-200-3	160/180/200	170/190/210	Two-way high speed 131 ㎡/h
Four Spray	B-155-4/B-175-4/B-195-4	155/175/195	170/190/210	Two-way high speed 163 ㎡/h

Additional Specifications

Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600DPI (optional)
Nozzle Type: HP45A
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Paper Handling: Unattended automatic paper receiving and feeding
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, durable
Machine Structure: Die standardized metal structure, high precision and long life
Output Center: Supports manual or automatic printing, optional ink-saving mode, supports online printing

Company Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries.

As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, and footwear enterprises. The company holds multiple software copyright and patent certificates.

Packing & Delivery

Exhibition

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available to meet specific requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
