Highlight:
EPSONN plotter refillable ink cartridge
, 230ml large format plotter ink
, big inkjet cartridge with warranty
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
230ml Refillable Big Ink Tank Plotter EPSONN Head Inkjet Plotter |
Power: |
300-400W |
Printing Resolution: |
150-600 DPI |
Connection Port: |
Network/LAN Port |
Printing Paper: |
40-80gsm White Plotter Paper; 80-250gsm Kraft Paper |
Ink Cartridge: |
Refillable 230ml Big Ink Cartridge |
Cutting Function: |
Yes, With Cutting Blade To Cut Down Paper After Printing |
Printing Speed: |
120sqm/h Dual Way Fast Printing |
Application: |
Paper Pattern, Graph,Contour Printing |
Support Files Formats: |
HPGL, PLT, DXF, HPGL Language, Compatible With Various CAD Softwares |

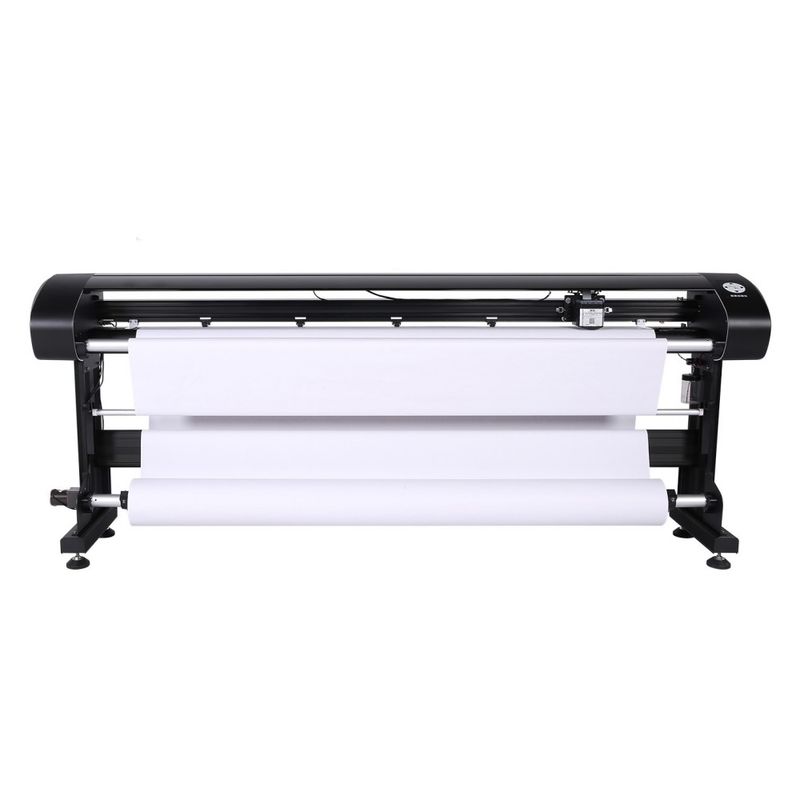

EPSONN 230ml Refillable Ink Cartridge Plotter
Product Overview
New arrival EP806 big ink cartridge printing plotter offering exceptional cost performance for industrial printing applications.
Key Features
- Large 230ml refillable ink cartridge (compared to standard HP45 type printing plotter with only 42ml capacity)
- High quality EPSON TX806 printing head with fast dual-way printing
- Printing speed of 120 square meters per hour
- Quality triangle cutting blade for automatic paper cutting after printing
Product Specifications
| Model # |
EP806-130 |
EP806-170 |
EP806-190 |
EP806-210 |
EP806-230 |
EP806-250 |
| Plot width |
125cm |
165cm |
185cm |
205cm |
225cm |
245cm |
| Paper width |
130cm |
170cm |
190cm |
210cm |
230cm |
250cm |
| Plot speed |
90 square meters per hour |
| File format |
HPGL language, compatible with various CAD software |
| Cutting function |
Auto cutting after plotting one marker |
| Resolution |
150-600DPI |
| Print head type |
Epson TX806 |
| Print head safety |
Inktruck reset automatic protection |
| Ink tank |
230ml capacity |
| Line quality |
Clean, smooth, and adjustable line thickness |
| Clean print head |
Auto cleaning print head |
| Load paper system |
Front loading, maximum roll diameter 28cm |
| Feed paper system |
Hidden infrared precision paper system, accurate and efficient |
| Take-up paper system |
Take-up plotting mode or drop-on-floor plotting mode |
| Paper |
White plotter paper 40-80 gsm, Kraft paper 80-250 gsm |
| Interface |
Network (LAN Port or Ethernet Port) |
| Power supply |
220V/50Hz |
| Panel |
Simple, convenient and durable |
| Machine structure |
Aluminum alloy structure, high machine precision, long lifetime |
| Software center |
Drive-free, fully automatic online, support multiple independent control |
Product Configuration
230ml Refillable Big Ink Cartridge
Triangle Blade to Cut Down Paper
High Quality & Speed Motor
Manufacturer Profile
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.
Product Packaging
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production for template cutter, inkjet cutter, pen writing cutter, CNC digital fabric cutter, and graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases and can pack according to export standards or your requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
