Home > Products > Pen Plotter Printer > 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops

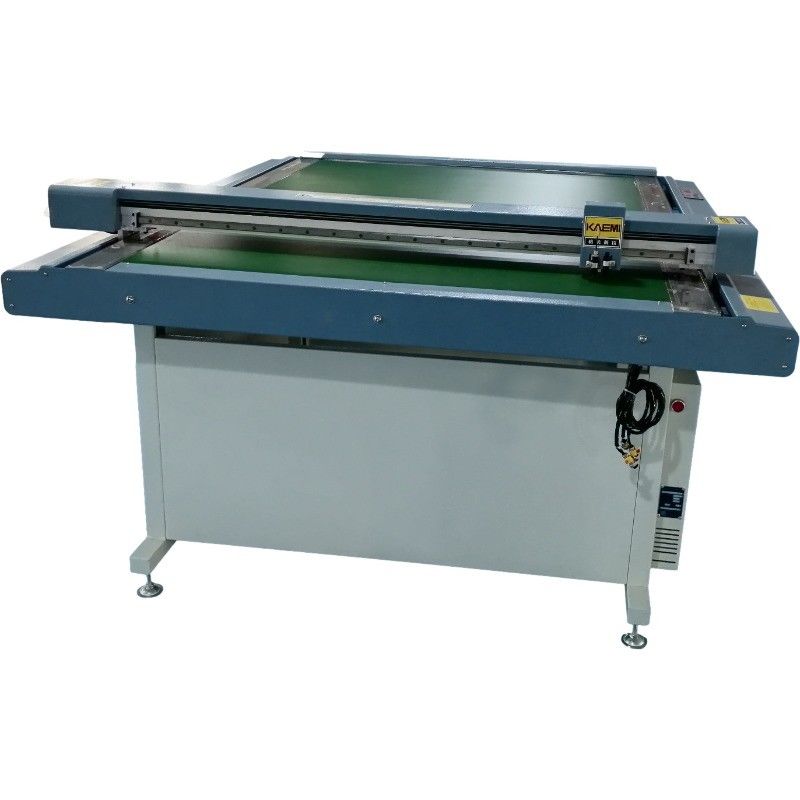

1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Price: $2,715.00/sets 1-2 sets

Get Best Price
Product Details
Highlight:

Blue Frame garment cutting machine

,

Silver Case CAD cutting plotter

,

Pen drawing garment cutter

Weight:
400 KG
Weight:
400 KG
Product Description
Blue Frame Silver Case 1509 CAD Garment Cutting Machine Cutting Plotter Pen Drawing Garment Cutter
Product Overview
The 1509 CAD Garment Cutting Machine is a high-performance cutting plotter designed for precision cutting and drawing applications in various industries including garment, footwear, and automotive decoration.
Technical Specifications
Model GM-1209B3 GM-1509B3 GM-1510B3 GM-1512B3
Cutting Window (Fabric Scope) 1200*900mm 1500*900mm 1500*1000mm 1500*1200mm
Overall Dimension (mm) 1600*1280*750 1900*1280*750 1900*1380*800 1900*1580*800
Cutting Speed 1200mm/s
Cutting Thickness 2mm
Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc
Repeatability Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN
Buffer Memory Size 1M/8M/32M (Can buffer more than 1 page)
File Formats HPGL (Compatible with Domestic and International CAD Online)
Control Panel 9 Keys and LED Display
Motor/Driver High Performance 3 Phase Step-motor
Supply Voltage AC 220V/110V±10%, 50Hz/3.5KW
Working Environment Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH
Fasten Vacuum Adsorption
Paper Thickness 150g-500g/㎡
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc
Key Features
  • New Frame Design Ensures Machine Stability When Running at High Speed
  • Optimized Circuit Layout; More Compact Electrical; Better Heat Dissipation; More Reasonable
  • Cutting Starting Points and Cutting Sequence Display System
  • System Updated to the Latest Version. Optimized Dashed Lines, Arcs, Machine Runs More Smoothly
  • Unique Error Data Identification Function
1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 0 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 1 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 2
Company Profile
1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 3

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.

The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 4 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 5 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 6

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".

After the first continuous drum cutter came into being in the middle part of China, we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery
1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 7 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 8 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 9
Exhibition
1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 10 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 11 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 12 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 13 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 14 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 15
Certifications
1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 16 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 17 1500x900mm CAD Garment Cutting Machine with 1200mm/s Speed and All Aluminum Countertops 18
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
