Products

Home > Products > Inkjet Cutting Plotter > 1500x1000mm Automatic Flatbed CAD Cutter for Paper Pattern with 2mm Thickness

1500x1000mm Automatic Flatbed CAD Cutter for Paper Pattern with 2mm Thickness

Name: 1500x1000mm Automatic Flatbed CAD Cutter for Paper Pattern with 2mm Thickness
Brand: Wuhan Gemei Joint Technology Co., Ltd.
SKU: GM1509P3
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Certification: CE,CCC,ISO9001,etc

Model Number: GM1509P3

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $3,215.00--$3,499.00/sets 1-2 sets

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)

Delivery Time: 2-5 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 500 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                1500x1000mm inkjet cutting plotter, cad flatbed inkjet cutting plotter, 2mm Thickness inkjet cutting plotter


Print Dimension:

1500*1000mm

Print Dimension:

1500*1000mm

Product Description

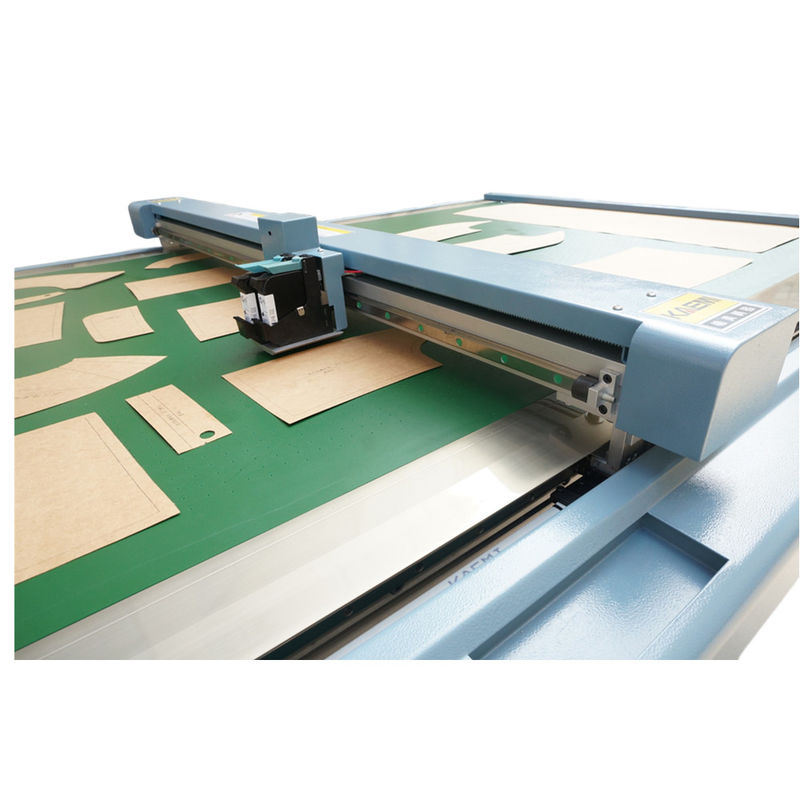

1500x1000mm CAD Inkjet Cutting Plotter Flatbed For Paper Pattern 2mm Thickness

1510 Stable Long Working Inkjet Printing Paper Pattern Plotter Flatbed CAD Cutter

Main Features

Unique Inkjet and Cutting Double Track Tracking System
Unique Paper Card Abnormal Monitoring System
Cutting Starting Points and Cutting Sequence Display System
Automatic Paging System
Fault Detection System for Whole Machine

Dual Knife Version Optional: Can perform Full Cut and Half Cut simultaneously, or use One Knife One Pen Holder for inkjet cutting and pen drawing at the same time (Dual knife version adds $400 USD)

Technical Parameters

Model	GM-1209P6	GM-1509P6	GM-1510P6	GM-1512P6
Cutting Window (Fabric Scope)	1200×900mm	1500×900mm	1500×1000mm	1500×1200mm
Overall Dimension (mm)	1705×1445×1000	2005×1445×1000	2005×1445×1000	2005×1645×1000

Max Speed: 1200mm/s
Materials Fasten: Vacuum Adsorption
Maximum Cutting Thickness: 2mm
Cutting Materials: White Paper, Kraft, Plastic Board, Fiberboard, etc
Printing Speed: 75㎡/h
Plot/Cut Tool: HP45 Ink Box, Tungsten Steel Blade
Precision: ≤0.01mm
Communication Port: USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats: HPGL (Compatible with Domestic and International CAD Online)
Control Panel: 9 Keys and LED Display (Chinese and English Switch)
Motor/Driver: High Performance 3 Phase Step-motor
Supply Voltage: AC 220V/110V±10%, 50Hz
Working Environment: Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH
Paper Thickness: 150g-500g/㎡
Application Areas: Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Product Images

Company Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China, we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery

Exhibition

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
