1500*900mm PET Cutting Scope All Aluminum Countertops Flatbed Cutter Template Machine

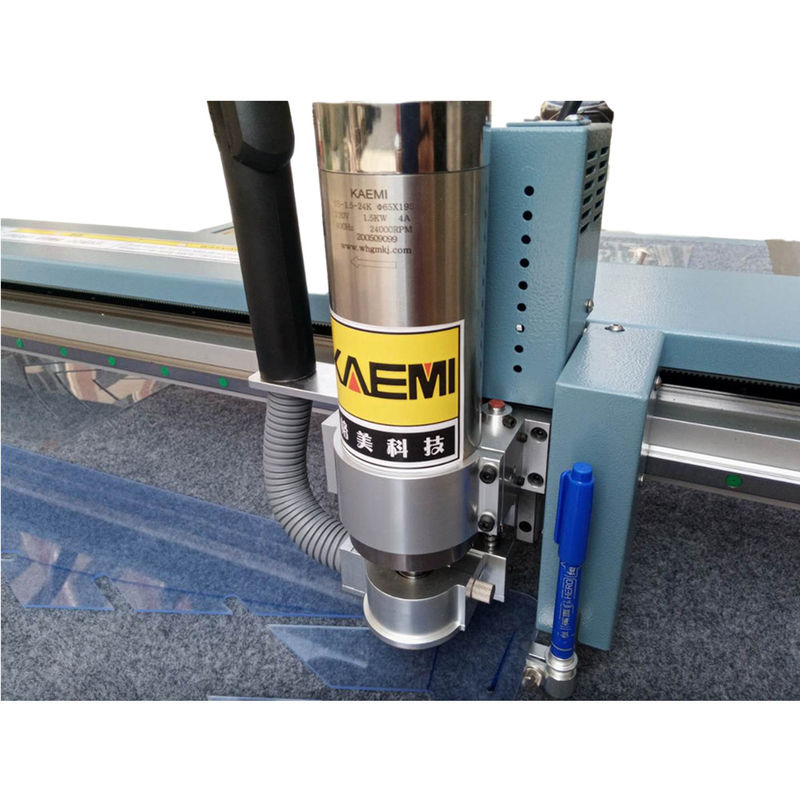

Garment sewing pattern apparel template sheet milling cutting machine flatbed cutter designed for precision cutting in textile and apparel manufacturing.

• Cutting Speed: 500-1500mm/s
• Cutting Thickness: ≤1.5mm-6.0mm
• Cutting Materials: PVC, PP, POM, Acrylic, PET, Kraft, etc.
• Processing Methods: Mill, Cut, Drill, Plot
• Cut Tools: Mill-cutter, Graver, Driller, Pen
• Repeatability Precision: ≤0.01mm
• Software Resolution: 0.025mm/0.01mm/0.1mm (Optional)
• Communication Port: USB/RJ45 Ethernet
• Buffer Memory Size: 1M/8M/32M (Can buffer more than 1 page)
• File Formats: DXF/HPGL/GPGL/PLT Formats Compatible
• Control Panel: 9 Keys and LED Display
• Driver System: Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
• Supply Voltage: AC 220V/110V±10%, 50Hz/3.5KW
• Fuse Value: 30A/35A
• Working Environment: -30~55℃ or -22~131℉
• Fasten: Vacuum/Clamping
• Mill Motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
• Waste Elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner

• Pneumatic Fixation Technology of High Efficiency Template
• Integrated Floating Pressure Foot and Vacuum Cleaning Technology
• Flexible Modification System for Cutting Starting Points and Cutting Sequence
• Independent Templates Editing and Designing System

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.

Gemei is a high-tech enterprise and software enterprise in Hubei Province, providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.
