Highlight:
PVC board garment cutter
, dual usage sewing pattern cutter
, flatbed template cutter machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Dual Usage Both Sewing Pattern PVC Board And Paper Pattern Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

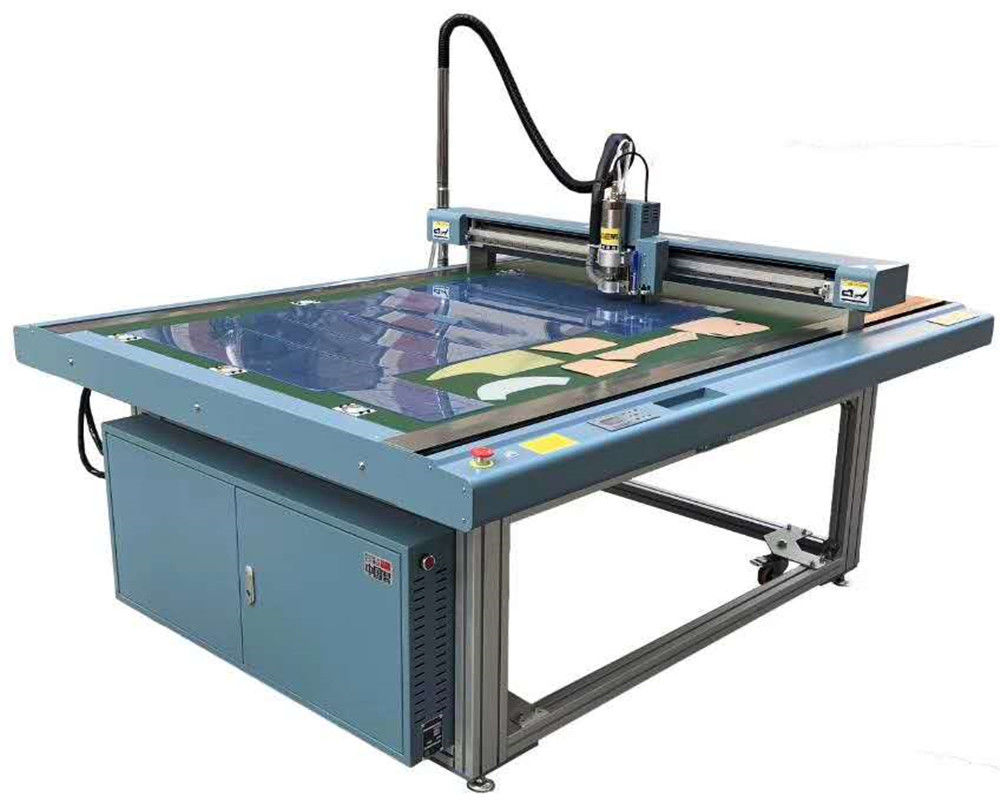

Dual Usage Sewing Pattern PVC Board and Paper Pattern Flatbed Garment Cutter
Professional dual-purpose flatbed cutter designed for both sewing pattern PVC boards and paper patterns in garment manufacturing.
Key Features
- All-aluminium profile fuselage: Compact, reasonable design with enhanced stability
- Smart accidental power off/power cut data recovery system: Prevents material waste during interruptions
- One-key intelligent fixture with multi-point zone adsorption system
- Multi-layer cutting capability in single operation
- Integrated floating pressure foot and vacuum cleaning technology
- Flexible modification system for cutting starting points and sequence
- Independent templates editing and designing system
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
2000*1570*1100mm |
2000*1770*1100mm |
2300*1770*1100mm |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Product Gallery
Packaging & Shipping
About GEMEI
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world's advanced technology with Chinese manufacturing advantages.
Our design philosophy emphasizes "good at core, simple in shape" - focusing on essential functionality with clean, efficient design. After introducing the first continuous drum cutter in central China, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI leverages the global manufacturing trend toward central China, maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.
Q: After-sales service
A: Professional after-sales team with 24-hour technical support available by phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically take 2-4 days, while customization requires 5-7 days.
