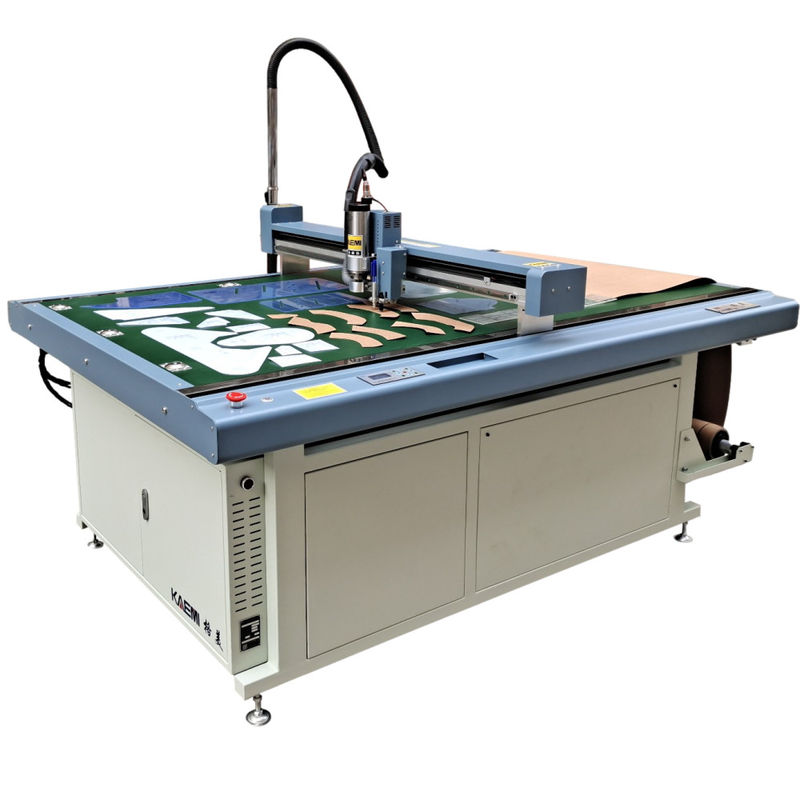

Garment Clothing Template Cutter CAD Paper Pattern Sewing Pattern Milling Cutting Machine
9015 Smart Template Board PVC Sheet Milling Cutting Machine Garment Flatbed Cutter
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A/35A |
| Working Environment |
-30~55℃ or -22~131℉ |
Cutting Capabilities
Cutting Materials: PVC, PP, POM, Acrylic, PET, Kraft, etc.
Processing Methods: Mill, Cut, Drill, Plot
Cut Tools: Mill-cutter, Graver, Driller, Pen
Fasten: Vacuum/Clamping
Mill Motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
Waste Elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner
Product Features
- Compatible with various CAD software
- Design while the machine is cutting
- Pneumatic Fixation Technology of High Efficiency Template
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
- Driver System: Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
- Control Panel: 9 Keys and LED Display
Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd.
Located in the national economic development Zone - Wuhan Linkong economic development zone, we are a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.
Gemei is a high-tech enterprise and software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City. Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates.
Packing & Delivery
Exhibition & Trade Shows
Certifications & Quality Standards
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for over 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
