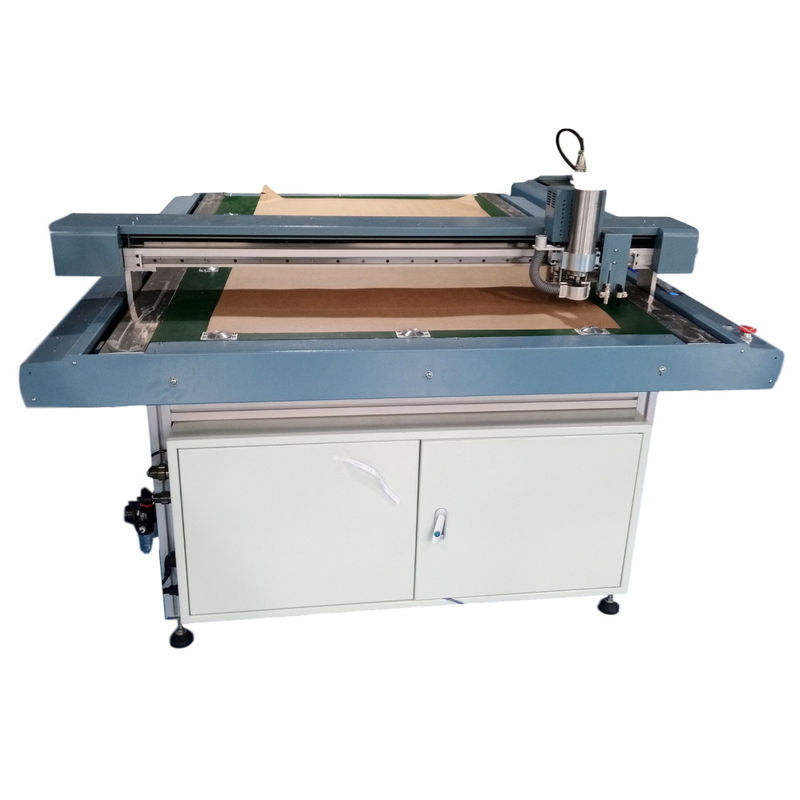

Dual Usage Paper Pattern Graph Contour PVC Board Template Cutting Machine
Professional garment cutting machine with all-aluminum construction and advanced features for precise template cutting.
Key Features
- All-aluminum profile fuselage: Compact, reasonable design for enhanced stability
- Smart accidental power off/power cut data recovery system: Prevents material waste
- One-key intelligent fixture with multi-point zone adsorption system
- Multi-layer cutting capability in single operation
- Integrated floating pressure foot and vacuum cleaning technology
- Flexible modification system for cutting starting points and sequence
- Independent templates editing and designing system
Technical Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension |
2000*1570*1100mm |
2000*1770*1100mm |
2300*1770*1100mm |
| Cutting Speed |
500-1800mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
Additional Specifications
Product Features: Compatible with various CAD software; Design while machine is cutting
Cut Tools: Mill-cutter, Graver, Driller, Pen
Software Resolution: 0.025mm/0.01mm/0.1mm (Optional)
Buffer Memory Size: 1M/8M/32M (Can buffer more than 1 page)
File Formats: DXF/HPGL/GPGL/PLT Formats Compatible
Control Panel: 9 Keys and LED Display
Driver System: Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
Fuse Value: 30A/35A
Working Environment: -30~55℃ or -22~131℉
Fasten: Vacuum/Clamping
Mill Motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
Waste Elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner
Product Gallery
Packaging & Shipping
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.
The company employs a novel design different from domestic traditional cutting machines, fully embodying the "good at core, simple in shape" design principle. After developing the first continuous drum cutter in central China, we successively created sample cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of world manufacturing industry transferring to central regions, maintaining a research and development team composed of doctors, senior engineers, and other high-quality talents, insisting that "innovation" is the eternal power driving GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases and can pack according to export standards or your requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
