Highlight:
flatbed cutter for template board
, PVC sheet milling machine
, sewing pattern cutting machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Sewing Pattern PVC Sheet Milling Cutting Machine Flatbed Cutter |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Data Transmission Interface: |
USB/Internet Access |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
2000*1770*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

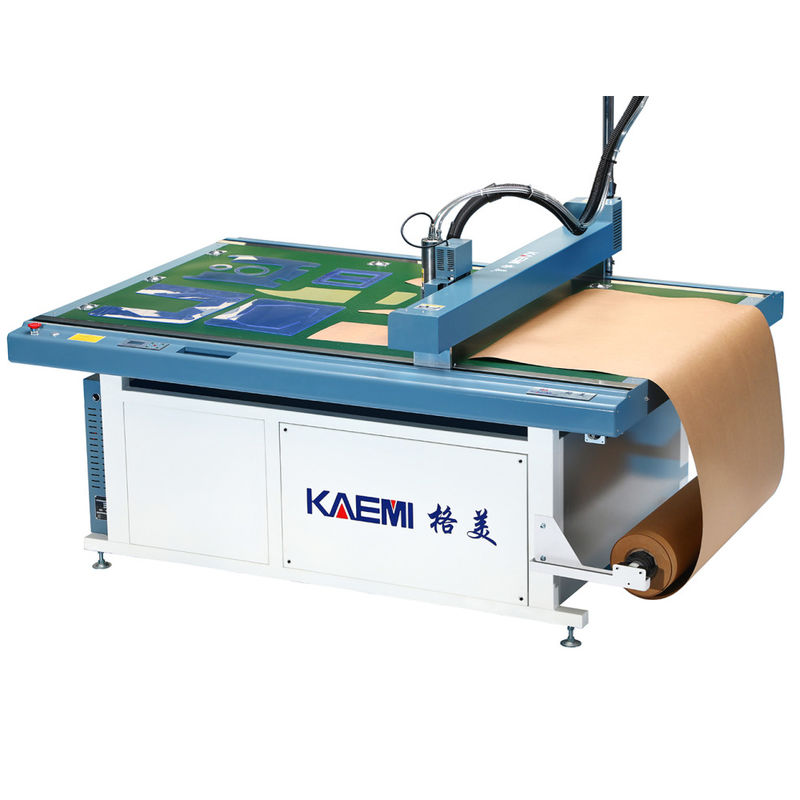

Handbags Industry Flatbed Cutter for Template Board Sewing Pattern PVC Sheet Milling
Template Board Sewing Pattern PVC Sheet Milling Cutting Machine Flatbed Cutter designed for precision cutting in handbag manufacturing and related industries.
Specifications
| Model |
GM-1509M5 |
GM-1512M5 |
GM1812M5 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
2000*1570*1100 |
2000*1770*1100 |
2300*1770*1100 |
Technical Features
- Cutting Speed: 500-1800mm/s
- Cutting Thickness: ≤1.5mm-6.0mm
- Cutting Materials: PVC, PP, POM, Acrylic, PET, Kraft, etc.
- Processing Methods: Mill, Cut, Drill, Plot
- Cut Tools: Mill-cutter, Graver, Driller, Pen
- Repeatability Precision: ≤0.01mm
- Software Resolution: 0.025mm/0.01mm/0.1mm (Optional)
- Communication Port: USB/RJ45 Ethernet
- Buffer Memory Size: 1M/8M/32M (Can buffer more than 1 page)
- File Formats: DXF/HPGL/GPGL/PLT Formats Compatible
- Control Panel: 9 Keys and LED Display
- Driver System: Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
- Supply Voltage: AC 220V/110V±10%, 50Hz/3.5KW
- Fuse Value: 30A/35A
- Working Environment: -30~55℃ or -22~131℉
- Fasten: Vacuum/Clamping
- Mill Motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
- Waste Elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner
Main Features
- All-aluminium Profile Fuselage; Compact and Reasonable; More Stable
- Global Initiative: Smart Accidental Power Off/Power Cut Data Recovery System (Avoid Cutting Materials Wasting)
- One Key Intelligent Fixture + Multi-point Zone Adsorption System
- Multi-layer at One-time Cutting
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We specialize in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies.
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
