Home > products > Inkjet Plotter Printer > Automatic Garment Cutting Plotter Printing 40 to 250gsm Paper Rolls Printing Plotter

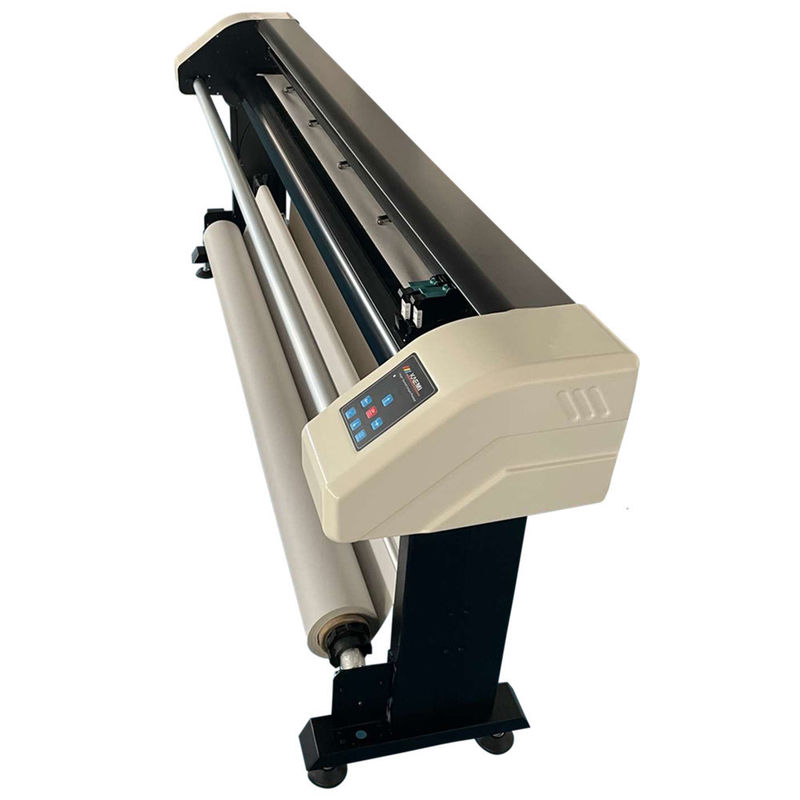

Automatic Garment Cutting Plotter Printing 40 to 250gsm Paper Rolls Printing Plotter

Name: Automatic Garment Cutting Plotter Printing 40 to 250gsm Paper Rolls Printing Plotter
Brand: Wuhan Gemei Joint Technology Co., Ltd.
SKU: GM-210H2-2
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Certification: CE,CCC,ISO9001,etc

Model Number: GM-210H2-2

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $799.00--$1,299.00/sets 1-10 Sets

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)

Delivery Time: 3-7 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 1000 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Type:	Inkjet Printer	Print Dimension:	Maximum 190cm To 250cm Width Printing Scope Sizes
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Advertising Company	Condition:	New
Plate Type:	Roll-to-Roll Printer	Use:	Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing
Automatic Grade:	Automatic	Color & Page:	Single Color
Voltage:	220v	Dimensions(LWH):	24565110cm
Weight:	85 KG	Warranty:	1 Year
Ink Type:	Pigment Ink	Key Selling Points:	Large-format
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Pump, Engine, Mother Board, Driver
Product Name:	Auto Paper Feeding Inkjet CAD Paper Pattern Plotter	Printing Width:	Maximum 190cm To 250cm Printing Scope Optional
Ink Cartridge:	Dual Head HP45 Ink Cartridge(4 Heads Optional)	Cutting Function:	Yes,with Cutting Blade To Cut Down(Cannot Cut Each Paper Pattern)
Printing Speed:	80-220 Sqm/h, Depends On Real Printing File	Cutting Blade:	Fine Quality Tungsten Cutting Blade
Connection Port:	Both USB And LAN Port(Ethernet Port)	Applicable Paper Rolls:	Printing:40 To 250gsm; Cutting 70-150gsm
Compatible Files Formats:	All CAD File Formats Including PLT, DXF, HGPL, Etc	Applicable Fields:	Garments, Shoes, Bags, Furniture, Car Interiors, Etc

Type:	Inkjet Printer
Print Dimension:	Maximum 190cm To 250cm Width Printing Scope Sizes
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Advertising Company
Condition:	New
Plate Type:	Roll-to-Roll Printer
Use:	Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing
Automatic Grade:	Automatic
Color & Page:	Single Color
Voltage:	220v
Dimensions(LWH):	24565110cm
Weight:	85 KG
Warranty:	1 Year
Ink Type:	Pigment Ink
Key Selling Points:	Large-format
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
Core Components:	Motor, Pump, Engine, Mother Board, Driver
Product Name:	Auto Paper Feeding Inkjet CAD Paper Pattern Plotter
Printing Width:	Maximum 190cm To 250cm Printing Scope Optional
Ink Cartridge:	Dual Head HP45 Ink Cartridge(4 Heads Optional)
Cutting Function:	Yes,with Cutting Blade To Cut Down(Cannot Cut Each Paper Pattern)
Printing Speed:	80-220 Sqm/h, Depends On Real Printing File
Cutting Blade:	Fine Quality Tungsten Cutting Blade
Connection Port:	Both USB And LAN Port(Ethernet Port)
Applicable Paper Rolls:	Printing:40 To 250gsm; Cutting 70-150gsm
Compatible Files Formats:	All CAD File Formats Including PLT, DXF, HGPL, Etc
Applicable Fields:	Garments, Shoes, Bags, Furniture, Car Interiors, Etc

Product Description

Auto Paper Feeding Inkjet CAD Paper Pattern Plotter Garment Cutting Plotter

Feature

1.High-speed Servo Control, Full Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)
2.Independent Output Manager Supports File Background Automatic Queuing Printing

3.Using advanced SOPC technology 4.Support breakpoint resume, ensure reliable data transmission and printing

5.Automatic printing online+Cutting Knife to Cut Down

6.Two Printing Heads/Three Printing Heads/Four Printing Heads Optional

Detailed Images

Quality zipper

Elastic band for convenient waistline adjustment

Superior polyester material

Size Information

Hot Selling Sizes is 190cm(72inch)and 210cm(80inch) Printing Width.

For 190cm width version, you can print and apply paper rolls within 190cm like 190/180/160/120cm Width version paper rolls. All will fit. Please choose a plotter size and paper roll according to your real need and usage.

Size Chart of Hot Selling Plotter Sizes

Dual Printing Heads Type	GMH2-190-2	GMH2-210-2	GMH2-230-2	GMH2-250-2
Four Printing Heads Type	GMH2-190-4	GMH2-210-4	GMH2-230-4	GMH2-250-4

Manufacture Specification

Printing Width(cm)	Printing Width According to model number, real printing width more or less, for example GMH1-190-2 Maximum Printing width around 185 to 190cm, GMH1-190-4 maximum printing width around 180-185cm
Feeding Paper Width(cm)	Paper Feeding Width 5 to 10cm bigger than maximum printing width
Printing Speed	Two-way High Speed 93 ㎡/h; Two-way High speed 131 ㎡/h;Two-way High Speed 163 ㎡/h
Printing format	HPGL Drawing Language, Compatible with Domestic and Foreign CAD Software, Special format can be Customized
Print resolution	150-600DPI
Type of Nozzle	HP45A
Cutting Funtion	With Tungsten Cutting Blade to Cut Down(cannot cut each pattern)
Line quality	Clear, Smooth, No Seam, Optional 1-8 Lines
Nozzle Cleaning	Automatic Cleaning Before Printing
Paper Loading	Front Heightening Device to Support Paper Roll with Diameter of 28cm
Paper Feeding	Hidden Infrared Precise Paper Feeding System, Continuous 700 Meters without Deviation
Receiving and Delivering Paper	Unattended Automatic Paper Receiving and Feeding
Print Media	40-80g, Ordinary Roll Printing Paper;80-250g, Single Brown Paper
Communication Interface	Network Port+USB, Multiple Computers can Separately Control Printing
Power Supply Voltage	220V/50Hz
Button Panel	Press the Keys Operation,Simple, Convenient, Durable
Machine Structure	Die Standardized Metal Structure, High Precision and Long Life
Output Center	1.Support Manual or Automatic Printing 2.Optional Ink-saving Mode 3.Support Online Printing

Best Selling

Recommending Styles

For the Inkjet Plotter We Have Mainly 3 Styles:

1.The normal dual head 4 head Hp45 ink cartridge printing plotter;

2. The continuous refill big capacity ink cartridge EPSPON head printing plotter;

3.The combo type dual head hp45 ink cartridge printing and cutting plotter(not just cut down, can cut each paper pattern).

190cm to 250cm Width

1 Pieces (MOQ) 2-4 Heads

190cm to 250cm Width

1 Piece (MOQ) 1 Big Head

125cm to 220cm Width

1 Piece(MOQ),Cutting+Printing

Company Introduction

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Our Services & Strength

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

FAQ

1. Q: Are you a manufacturer?

A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing
cutter/cnc digital fabric cutter/graph plotter in this field for 10+ years.

2. Q: How do you pack these products?

A: Usually packed in wooden case and can pack according to export standard or your requirement.

3. Q: Is it customizable?

A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.

4.Q: After-sales service

A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype 5.Q: What is your lead time? A: Spot goods usually take 2-4 days, and customization takes 5-7 days
