Highlight:
Smart CAD flatbed cutting machine
, Blue frame pattern cutter
, Silver case paper cutting machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Smart CAD Flatbed Paper Pattern Cutting Machine Pen Drawing Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade |
Cutting Scope: |
1500*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s |
Cutting Machine Size: |
1900*1380*800mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

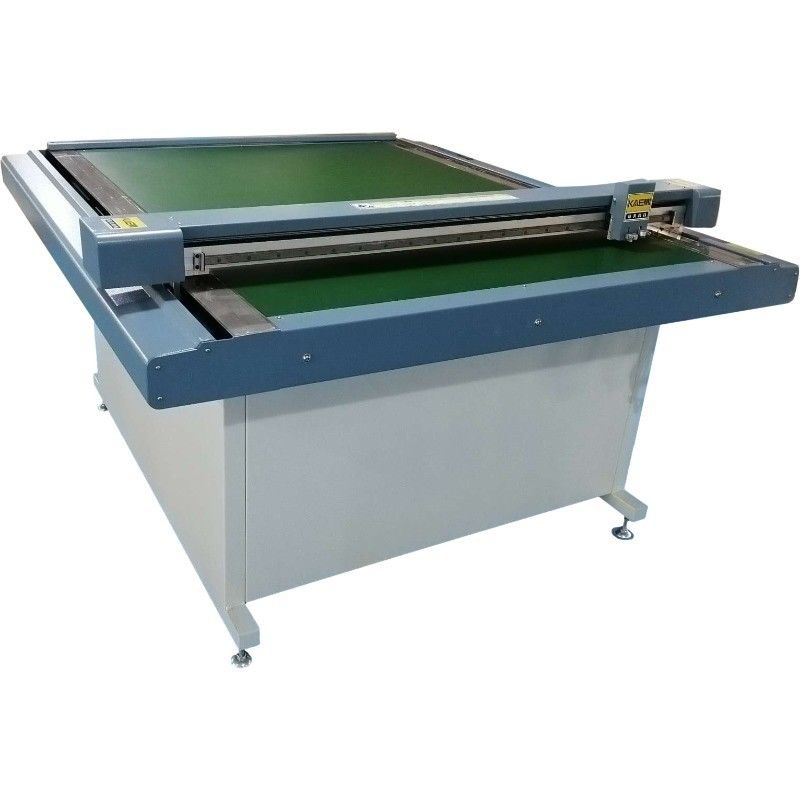

1510 Smart CAD Flatbed Paper Pattern Cutting Machine
Blue Frame Silver Case Design - Professional pen drawing cutter for industrial pattern cutting applications
Technical Specifications
| Model |
GM-1209B3 |
GM-1509B3 |
GM-1510B3 |
GM-1512B3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension |
1600*1280*750mm |
1900*1280*750mm |
1900*1380*800mm |
1900*1580*800mm |
| Cutting Speed |
1200mm/s |
| Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Fasten |
Vacuum Adsorption |
| Paper Thickness |
150g-500g/㎡ |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Key Features
- New frame design ensures machine stability when running at high speed
- Optimized circuit layout with compact electrical design for better heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother operation
- Unique error data identification function
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.
As a high-tech enterprise and software enterprise in Hubei Province, we are committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Our mission is to transform traditional industries with advanced technology.
Packing & Delivery
Industry Exhibitions
Certifications & Quality Standards
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: We typically use wooden cases packed according to export standards, and can customize packaging according to your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard models are available within 2-4 days, while custom orders typically take 5-7 days to complete.
