Highlight:
white paper board flatbed cutter
, 1200mm/s cutting speed flatbed plotter
, inkjet flatbed cutter for materials
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Kraft White Paper Board Flatbed Inkjet Cutter Pattern Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1700*1450*1100mm |
Working File Formats: |
PLT, DXF, HPGL, Etc(Normal CAD File Formats) |

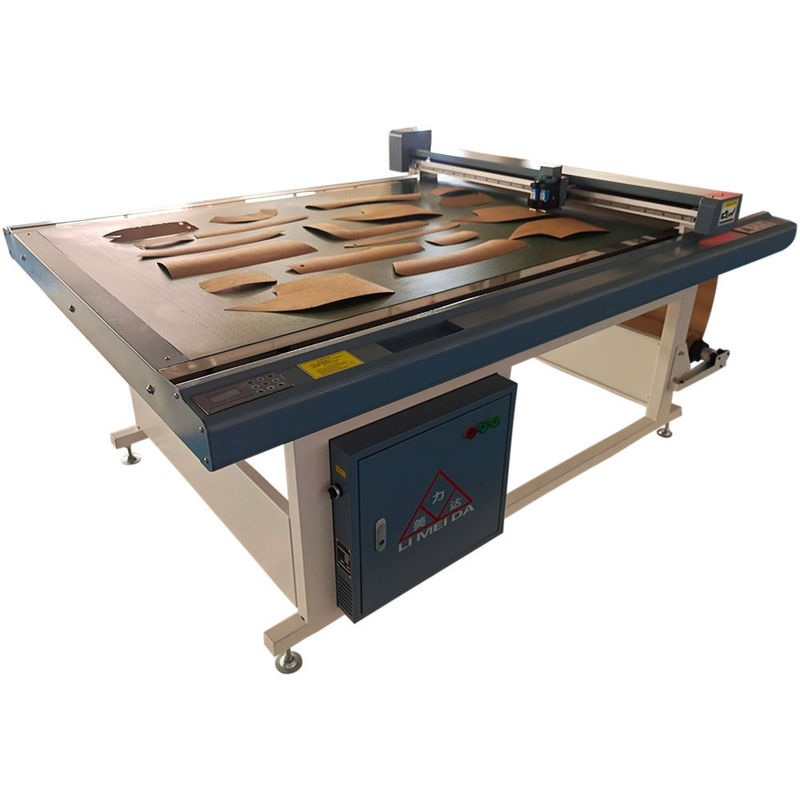

White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed
Advanced paper pattern cutting system combining inkjet printing and precision cutting for industrial applications.
Key Features
- Dual-track inkjet and cutting tracking system
- Paper card abnormal monitoring system
- Cutting starting points and sequence display
- Automatic paging system
- Comprehensive fault detection system
Technical Specifications
| Model |
JK1209P6 |
JK1509P6 |
JK1510P6 |
JK1512P6 |
| Cutting Window |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension |
1700*1450*1100mm |
2000*1550*1100mm |
2000*1550*1100mm |
2000*1650*1100mm |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ (-22~122℉); Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting |
Product Gallery
Packaging & Shipping
Company Information
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world's advanced technology with Chinese manufacturing excellence.
Our design philosophy emphasizes "good at core, simple in shape" - focusing on robust internal engineering with clean, functional exteriors. After introducing the first continuous drum cutter in central China, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI capitalizes on the global manufacturing shift to central regions by maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship within 2-4 days, while custom orders require 5-7 days for completion.
